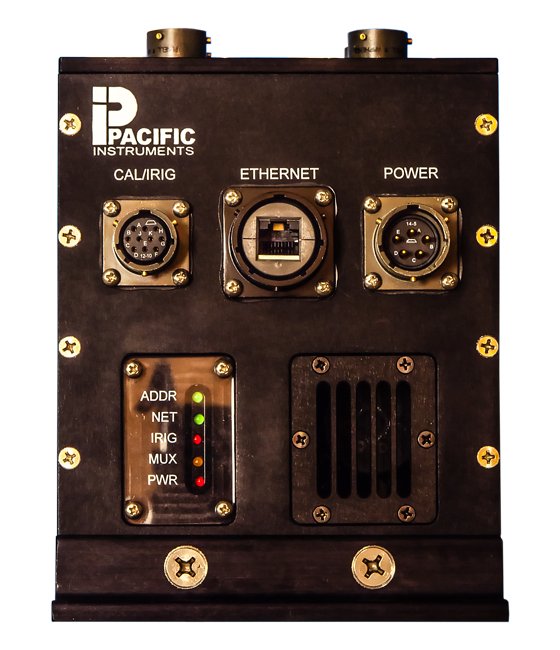

The Pacific Ruggedized 7200 Data Acquisition System stands out as a robust solution for strain gage, bridge, and voltage transducer data acquisition needs in tough environments. With 16 channels and advanced features like Ethernet control, real-time temperature correction, and high accuracy, this system excels in applications like wind tunnels and engine test stands. Offering precise data digitization, wide-ranging programmable filters, and synchronized sampling, it ensures reliable performance even in challenging conditions.
Product Specifications
Accuracy 7214 Accuracy
The system maintains ±0.05% full scale (2-sigma) uncertainty for gains up to 200 and ±0.1% full scale (2-sigma) uncertainty for gains above 200 over the operating temperature range.
Accuracy 7216 Accuracy
The system maintains ±0.025% full scale (2-sigma) uncertainty for gains up to 200 and ±0.05% full scale (2-sigma) uncertainty for gains above 200 over the operating temperature range.
Accuracy 7218 Accuracy
The system maintains ±0.05% full scale (2-sigma) uncertainty for gains up to 200 and ±0.1% full scale (2-sigma) uncertainty for gains above 200 over the operating temperature range.
Accuracy 7220 Accuracy
The system maintains ±0.05% full scale (2-sigma) uncertainty for gains up to 200 and ±0.1% full scale (2-sigma) uncertainty for gains above 200 over the operating temperature range.
Amplifier Bandwidth
10 kHz (-3dB)
Amplifier Common Mode
60 dB plus gain in dB to 110 dB, DC to 60 Hz.
Amplifier Gain
Programmable from 1 to 1,000 with 0.02% resolution. Thirteen calibrated gain steps are provided: 1, 2, 3, 5, 10, 20, 30, 50, 100, 200, 300, 500, 1000 with ±0.02% accuracy.
Amplifier Gain Linearity
±0.02 %
Amplifier Gain Stability
±0.01% for 30 days, ±0.001%/ºC compensated.±0.05% for 30 days, ±0.005%/ºC without compensation.
Amplifier Input Range
±10 mV to ±10 Volts.
Amplifier Noise 10 Hz
2.0 µV RTI plus 0.3 mV RTO, RMS.
Amplifier Operating Cm Voltage
±10 V
Amplifier Overload
Recovery time is 120 µS to within ±0.1% for a 10 times overload to ±10 Volts.
Amplifier Source Current
±40 nA, ±0.4 nA/°C
Amplifier Zero Amplifier
Automatic zero to ±2 µV RTI or ±1.0 mV RTO whichever is greater.
Amplifier Zero Stability
±2 µV RTI plus ±1 mV RTO over the full temperature range.
Calibration Shunt
Two steps of single shunt.
Calibration Shunt Resistors
Installed shunt resistors provide 0.502 mV/V and 0.250 mV/V, ±1% for 350 Ohm bridge.
Calibration Voltage Calibration
The output of a temperature stable, 5-Volt internal reference with ±0.01% stability, X1.0, X0.1 and X0.01 ±0.05% attenuator and 0.0015% resolution on each attenuator setting may be applied to each channel. Accuracy is ±0.2% for gains to and including 100 and ±0.3% for gains over 100. Stability is ±0.01%. Output of the internal reference can be measured on an external connector.
Calibration Zero Calibration
Amplifier input disconnected and shorted for zero calibration.
Digitizer Rate
24K samples per second per channel. Individual channels may be programmed to output data at rates from 10 Hz to 24 kHz. Supports all sixteen channels at the highest sample rate.
Digitizer Resolution
24-bits, Sigma-Delta type.
Excitationtransducer Power Transducer Power
7220A: Regulated voltage. Programmable from 1 to 15 Volts in 1V steps. Regulation and stability ±1%
Excitationtransducer Power Voltage Excitation
7214A & 7216A: Constant voltage with remote sensing. Programmable from 1 to 15 Volts with 1 mV resolution. Calibrated 1-Volt steps ±0.025% full scale. 50 mA limited to 70 mA maximum.
Excitationtransducer Power Voltage Excitation Noise
200 µV peak-to-peak, DC to 10 kHz
Excitationtransducer Power Voltage Excitation Regulation
±0.1% over input voltage range and no-load to full load.
Excitationtransducer Power Voltage Excitation Stability
±0.01%, 0.001%/°C
Filter Frequency
Programmable from 10 Hz to 3 kHz with 80 dB/octave attenuation above cut-off.
Filter Type
Finite Impulse Response (FIR) with 128 coefficients.
Input Bridge Balance
7216A: Automatic by program control. Balance accuracy ±0.025% of range, ±1 mV RTO. Range set by resistor up to 25 mV/V, 2.5 mV/V (350 Ohms) installed.
Input Configuration
7220A: Four-wire input, signal input (2), transducer power (2) and shield. | 7214A & 7216A: Six-wire input, signal input (2), excitation (2), excitation sense (2) and shield. Programmable bridge completion for half bridges and 120 Ohm and 350 Ohm quarter bridges. | 7220A: Four-wire input, signal input (2), transducer power (2) and shield.
Input Input Impedance
50 Megohms shunted by 500 pF.
Input Input Protection
±50 Volts differential, ±50 Volts common mode without damage.
Input Input Stability
±0.02% for 8 hours, ±0.005%/ºC.
Interface Communications Data Format
Floating point, 32-bits. Output available in engineering units, Volts or millivolts.
Interface Communications Interface
1 Gigabit Ethernet, TCP/IP, control and data.
Mechanical Depth
12 in
Mechanical Height
7.75 in
Mechanical Power Mechanical
20 to 30 VDC, 3A
Mechanical Width
5.25 in
