Palmgren Heavy-Duty 16 Spindle Speed Drill Press
Palmgren Heavy-Duty 16 Spindle Speed Drill Press
SKU:DRI-cbf080
Powerful and precise drill press with versatile features for accurate metalworking applications.
Regular price
$1,699.99
Regular price
Sale price
$1,699.99
Unit price
per
Initiate Order
Palmgren Heavy-Duty 16 Spindle Speed Drill Press
$1,699.99
Quantity: 1
Claim Your Seller Account
Palmgren Heavy-Duty 16 Spindle Speed Drill Press
$1,699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

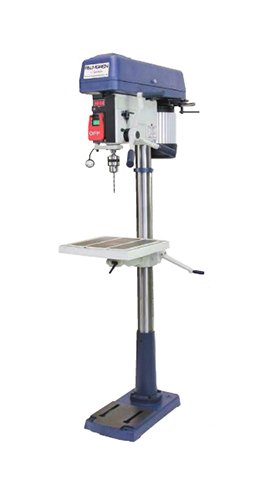

The Palmgren Heavy-Duty 16 Spindle Speed Drill Press with Step Pulley is a robust and precise drilling solution designed to meet the demands of metalworking applications. With a solid construction and a wide range of spindle speeds (138 to 3476 rpm), this drill press offers the accuracy and stability required for professional drilling tasks. Features like a fully enclosed spindle, extended quill travel, and LED spindle speed readout enhance operational efficiency. The table versatility, including tilting and rotation capabilities, adds versatility to your work. Ideal for deep hole applications, this drill press is your go-to choice for accurate and repeatable drilling operations.
Product Specifications
Features Features

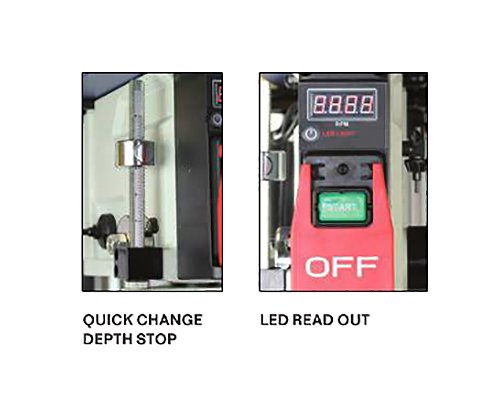

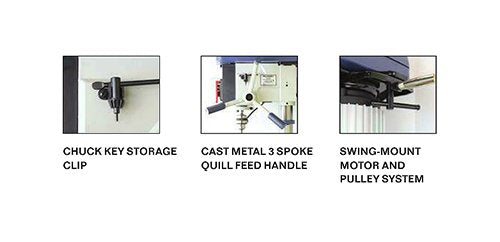

Fully enclosed spindle with spaced bearings for maximum spindle support and accurate drilling operationsMaximum spindle run out of 0.0005â Extended quill/spindle travel ideal for deep hole applications Quick change vertical depth stop for accurate, repeatable feed lengthIncludes chuck with key and arborLED readout for spindle speedsRack and pinion table raiser Table tilts 45 degrees right and left, and rotates 360 degrees around the column Front mounted industrial paddle-type power switch
Technical Specs Alternating Current Ac Voltage
5 V
Technical Specs Brands
Palmgren
Technical Specs Capacity Cast Iron
5/8 in
Technical Specs Depth
28 in
Technical Specs Height
65 in
Technical Specs Motor Horse Power Hp
1 hp
Technical Specs Number Of Phase
3
Technical Specs Range Of Spindle Speeds Revolution Per Minute Rp
138 to 3476 rpm
Technical Specs Spindle Speeds
16 rpm
Technical Specs Spindle Table
16-1/2 in
Technical Specs Spindle Taper
MT2
Technical Specs Spindle Travel
5 in
Technical Specs Swing
17 in
Technical Specs Table Slots
5/8 in
Technical Specs Table Work Surface
14-3/8 x 14-3/8 in
Technical Specs Voltage
240 V
Technical Specs Width
15-1/2 in
