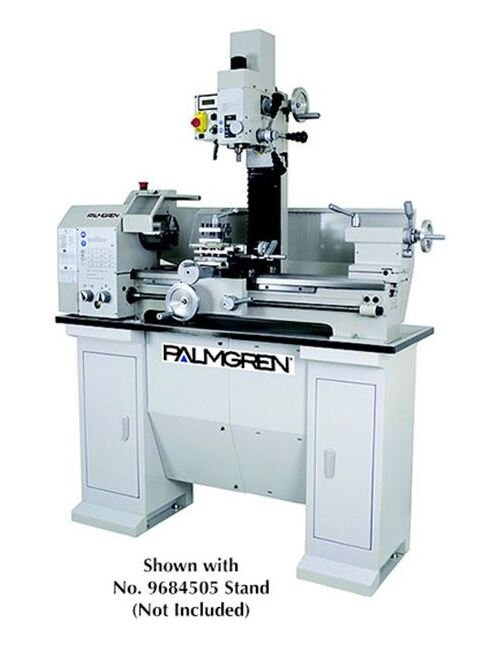

Palmgren Precision 11 x 27 Inch Bench Lathe & Mill Combo
Palmgren Precision 11 x 27 Inch Bench Lathe & Mill Combo
SKU:MIL-08a4e8
Experience precision and versatility with the Palmgren Bench Lathe & Mill Combo for all your machining needs.
Regular price
$5,699.99
Regular price
Sale price
$5,699.99
Unit price
per
Initiate Order
Palmgren Precision 11 x 27 Inch Bench Lathe & Mill Combo
$5,699.99
Quantity: 1
Claim Your Seller Account
Palmgren Precision 11 x 27 Inch Bench Lathe & Mill Combo
$5,699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Palmgren 11 x 27 Inch Bench Lathe and Mill offers exceptional precision, power, and versatility for turning, milling, and drilling operations. Constructed with heavy-duty cast iron, precision thrust and ball bearings, and hardened ways, it ensures years of trouble-free, precise machining. Designed to meet the DIN 8606 toolmakers precision lathe standard for accuracy and consistent performance.
Product Specifications
Additional Information Additional Information
The all gear drive transmission on the mill delivers full power at any speed driving the cutting tools at nearly 100% of available horsepower and torque.With such a wide range of versatility and features, this all- purpose combination lathe/mill is one of the most function manual machine centers that can operate in all types and sizes of shops.
Features Features
LATHE:Trapezoid machine tool spindleDual P5 tapper roller bearings on spindlePrismatic bed of solid aged cast iron â hardened to HRO 42-52 for long lifeFast easy feed speed and direction changes with front mounted selector handlesFeed gear box is constructed of helical steel gears running in an oil bathFeed lead screw is supported and runs on two bearingsPrecision machined slide with adjustable hand wheels with 0.002" / 0.001" scalesTailstock with adjustable precision scale of 0.02 mm / 0.0008"3 Jaw lathe chuck4Way tool postSafety lathe chuck and tool post guardsCentersChip tray and splash guardMILL:Electronic variable speedAll steel gear drive trainBuilt-in work lightBox column with hardened, ground and hand scraped ways2 MT machine tools spindle with draw barPrecision machine tool spindle with guaranteed concentricity of .0005" at the spindle noseDrill chuck and arbor
Technical Specs Brands
Palmgren a CH Hanson Company
