Paradigm 10HP & 15HP Low Noise Reciprocating Air Compressors
Paradigm 10HP & 15HP Low Noise Reciprocating Air Compressors
SKU:REC-dcd204
Experience quiet and reliable 10HP & 15HP reciprocating air compressors suitable for institutional and government applications.
Regular price
$5,999.99
Regular price
Sale price
$5,999.99
Unit price
per
Initiate Order
Paradigm 10HP & 15HP Low Noise Reciprocating Air Compressors
$5,999.99
Quantity: 1
Claim Your Seller Account
Paradigm 10HP & 15HP Low Noise Reciprocating Air Compressors
$5,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

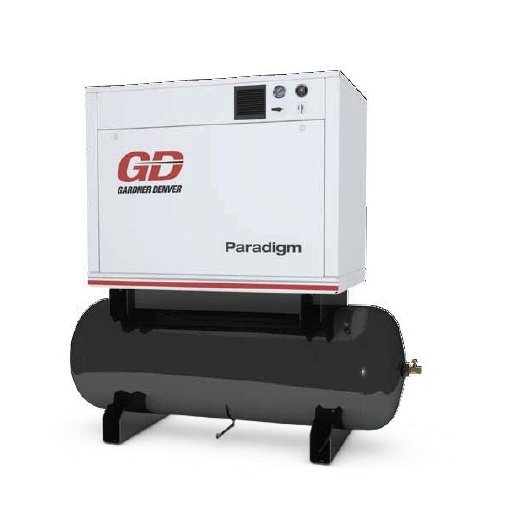

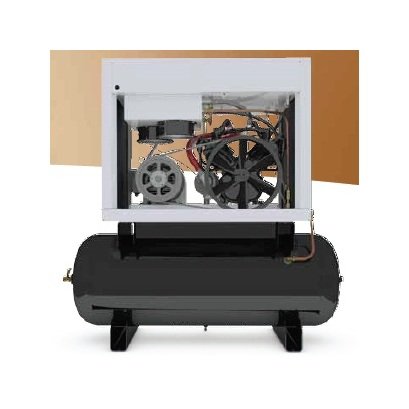

The Paradigm Low Noise Reciprocating Air Compressors in 10HP and 15HP models offer a robust solution for institutional and government buyers seeking high-performance compressors with minimal noise output. Engineered with dual cooling fans, isolated coolers, and vibration minimization features, these units ensure optimal motor service life and reliability. With a sound level of 66 dBA and superior cooling efficiency, these compressors deliver quiet operation and consistent performance in demanding environments.
Product Specifications
Optional Accessories 0
Moisture Separator Dual Control High Temperature Shut Down Electric Tank Drain Vibration Isolators

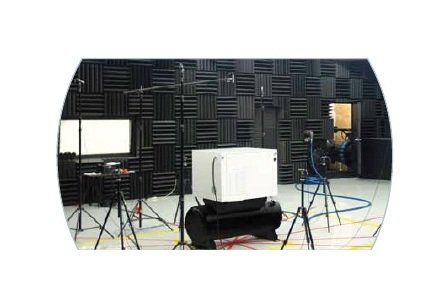

Sound Testing 0
With a commitment to research and development, Gardner Denver provides our customers with products which uphold our tradition of quality and proven results. As part of the new product development process, the Paradigm has passed extensive design reviews as well as performance, endurance and sound testing requirements.
Specifications 175 Psi Rating
740 rpm
Specifications 175 Psi Rating Cfm Delivery
34.1 cfm
Specifications 175 Psi Rating Displ
43.1 cfm
Specifications Approximate Shipping Weight
1220 lb
Specifications Height
70 in
Specifications Length
73 in
Specifications Motor Power
10 hp
Specifications Pump Comp Model
RP30D
Specifications Sound Level
66 dBA
Specifications Tank Capacity
120 gal
Specifications Type
Horizontal Tank Mounted Units
Specifications Width
32 in
Standard Features 0
Multi-finned cylinders for cooler operating temperatures resulting in long life and consistent performance. Two compression rings and one oil control ring to ensure low oil carry-over and provide efficient air delivery. Large-diameter finned tubing with the greatest cooling effect between stages for maximum compressor efficiency. Pressure relief valves located in inter-stage intercooler and discharge line for safe compressor operation. Precision balanced flywheel with cast fan blades for optimum compressor cooling and longer life. Removable manifolds for easy serviceability. Balanced rugged ductile iron crankshaft with large diameter throws for minimum bearing loads and counterweights to minimize vibration. Rugged cast iron oil reservoir with convenient sight gauge glass, corner oil fill boss and large oil drain for user-friendly serviceability. A pressure switch allows the compressor to start unloaded every time. This ensures the lowest amount of starting torque is required by the electric motor Magnetic starter for thermal overload protection Manual tank drain Standard start/stop control Low Oil Level Shutdown Sound attenuating enclosure for low noise operation Front and back panels can be easily removed for fast and easy service access Ball valve on crankcase drain for easy maintenance of lubricant Air intake pre-filter Package easily fits through a standard 36" door 80/20 duty cycle
