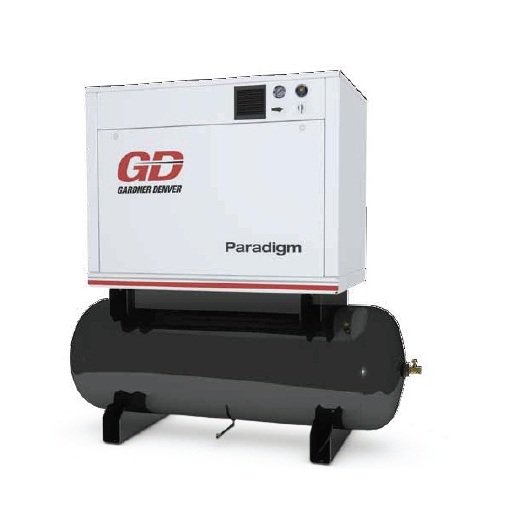

Paradigm Low Noise Reciprocating Air Compressor - 10/15 HP
Paradigm Low Noise Reciprocating Air Compressor - 10/15 HP
SKU:REC-662d41
Powerful and quiet Paradigm Low Noise Reciprocating Air Compressor - Ideal for industrial applications
Regular price
$3,999.99
Regular price
Sale price
$3,999.99
Unit price
per
Initiate Order
Paradigm Low Noise Reciprocating Air Compressor - 10/15 HP
$3,999.99
Quantity: 1
Claim Your Seller Account
Paradigm Low Noise Reciprocating Air Compressor - 10/15 HP
$3,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Paradigm Low Noise Reciprocating Air Compressor offers exceptional performance with 10 and 15 horsepower motors, delivering up to 21.3 cfm at 175 PSI while maintaining a quiet 67 dBA sound level. Engineered with dual cooling fans, an air-cooled after cooler, and vibration isolation technology, this horizontal tank-mounted unit ensures reliable, low-noise operation. The sound attenuating enclosure, precision-balanced flywheel, and rugged construction enhance durability, making it ideal for industrial applications requiring efficiency and minimal noise output.
Product Specifications
Optional Accessories 0
Moisture Separator Dual Control High Temperature Shut Down Electric Tank Drain Vibration Isolators
Sound Testing 0

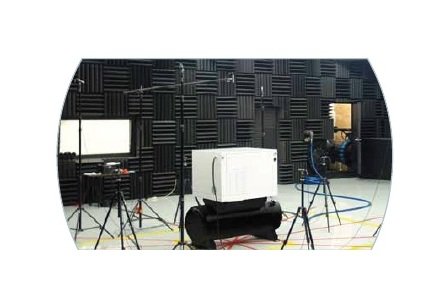

With a commitment to research and development, Gardner Denver provides our customers with products which uphold our tradition of quality and proven results. As part of the new product development process, the Paradigm has passed extensive design reviews as well as performance, endurance and sound testing requirements.
Specifications 175 Psi Rating
734 rpm
Specifications 175 Psi Rating Cfm Delivery
16.8 cfm
Specifications 175 Psi Rating Displ
21.3 cfm
Specifications Approximate Shipping Weight
733 lb
Specifications Height
53 1/2 in
Specifications Length
67 in
Specifications Motor Power
5 hp
Specifications Pump Comp Model
RP15B
Specifications Sound Level
67 dBA
Specifications Tank Capacity
80 gal
Specifications Type
Horizontal Tank Mounted Units
Specifications Width
31 1/2 in
Standard Features 0

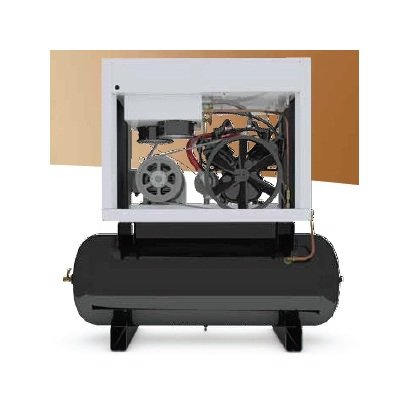

Multi-finned cylinders for cooler operating temperatures resulting in long life and consistent performance. Two compression rings and one oil control ring to ensure low oil carry-over and provide efficient air delivery. Large-diameter finned tubing with the greatest cooling effect between stages for maximum compressor efficiency. Pressure relief valves located in inter-stage intercooler and discharge line for safe compressor operation. Precision balanced flywheel with cast fan blades for optimum compressor cooling and longer life. Removable manifolds for easy serviceability. Balanced rugged ductile iron crankshaft with large diameter throws for minimum bearing loads and counterweights to minimize vibration. Rugged cast iron oil reservoir with convenient sight gauge glass, corner oil fill boss and large oil drain for user-friendly serviceability. A pressure switch allows the compressor to start unloaded every time. This ensures the lowest amount of starting torque is required by the electric motor Magnetic starter for thermal overload protection Manual tank drain Standard start/stop control Low Oil Level Shutdown Sound attenuating enclosure for low noise operation Front and back panels can be easily removed for fast and easy service access Ball valve on crankcase drain for easy maintenance of lubricant Air intake pre-filter Package easily fits through a standard 36" door 80/20 duty cycle
