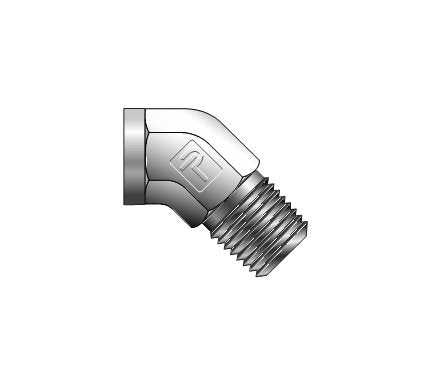

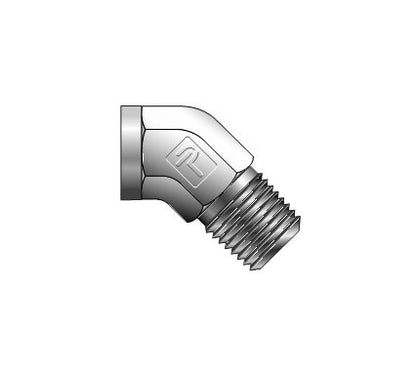

Parker 45-Degree Street Elbow SVE - FNPT to MNPT, 3/4 NPT Male/Female, Brass/Steel
Parker 45-Degree Street Elbow SVE - FNPT to MNPT, 3/4 NPT Male/Female, Brass/Steel
SKU:FIT-1ac5e4
Precision-machined Parker 45-Degree Street Elbow SVE for industrial applications, leak-free connections, and ANSI compliance.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Parker 45-Degree Street Elbow SVE - FNPT to MNPT, 3/4 NPT Male/Female, Brass/Steel
$24.99
Quantity: 1
Claim Your Seller Account
Parker 45-Degree Street Elbow SVE - FNPT to MNPT, 3/4 NPT Male/Female, Brass/Steel
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your industrial applications with the Parker 45-Degree Street Elbow SVE. These precision machined Instrument Pipe Fittings offer leak-free connections and exceptional quality. Manufactured to strict standards, they are designed for process control and instrumentation, meeting ANSI requirements for working pressures. Packaged in sealed boxes, available in sizes up to 2" NPT, and materials including Stainless Steel, Brass, and Steel.
Product Specifications

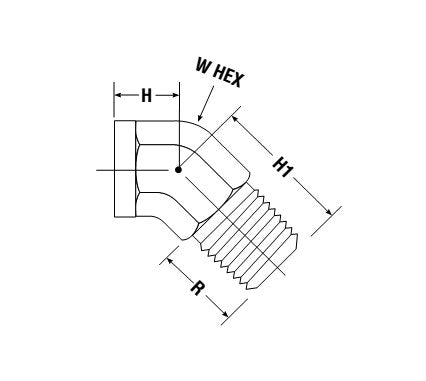

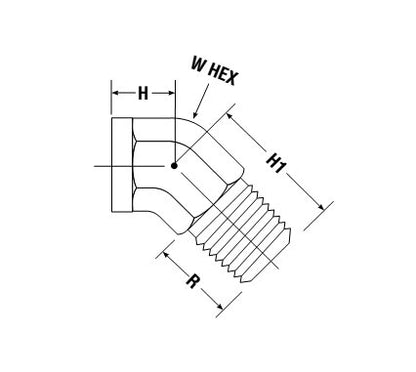

Dimensions Connection Type
FNPT to MNPT
Dimensions H
.97 in
Dimensions H1
1.38 in
Dimensions Npt Thread Female
3/4
Dimensions Npt Thread Male
3/4
Dimensions R
.75 in
Dimensions Working Pressure Brass
2000 psig
Dimensions Working Pressure Stainless Steel
3500 psig
Dimensions Working Pressure Steel
3700 psig
Dimensions W Hex
1 5/16 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
