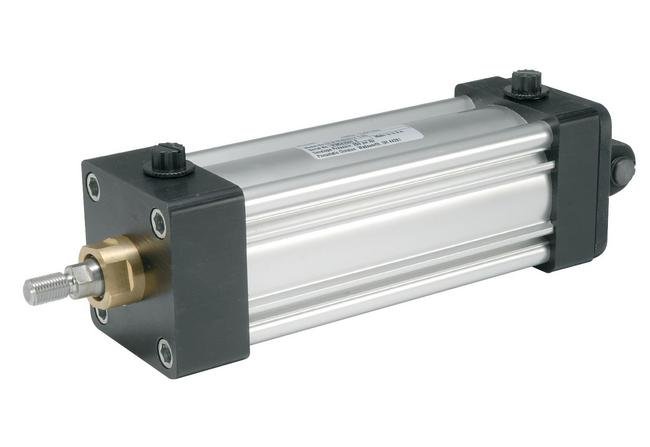

Parker 4MA Air Cylinder 2-1/2" Bore X 6" Stroke
Parker 4MA Air Cylinder 2-1/2" Bore X 6" Stroke
SKU:AIR-9b0990
Enhance operations with the Parker 4MA Air Cylinder's adaptable design, low friction operation, and quick maintenance features.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Parker 4MA Air Cylinder 2-1/2" Bore X 6" Stroke
$289.99
Quantity: 1
Claim Your Seller Account
Parker 4MA Air Cylinder 2-1/2" Bore X 6" Stroke
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your operations with the Parker 4MA Air Cylinder, a ruggedly constructed, highly configurable solution. This aluminum cylinder features carboxilated nitrile seals, urethane rod wiper, and piston wear band for low friction, leak-free operation. With 8 bore sizes, 20 NFPA mounting styles, and customizable options, the 4MA offers adaptability to diverse applications. The externally removable bronze gland allows for quick maintenance without disassembling the body, reducing downtime. Explore additional features like Rod Lock and Hydraulic versions, various bore and stroke sizes, RoHS compliance, and custom design options.
Product Specifications
Specifications Bore Size In
2-1/2
Specifications Description
2-1/2" Bore X 6" Stroke Air Cylinder with 5/8" Dia. Rod & 7/16-20 Threads (For C & W Dust Collectors) (Cylinder has 1.375" Rod Extension & 5/8" Dia. Rod W/7/16-20 Threads)
Specifications Manufacturer
Parker / Schrader Bellows
Specifications Piston Type
Lipseals and magnetic ring (aluminum piston)
Specifications Shipping Weight Lbs
6.00
Specifications Stroke Length In
6.00
