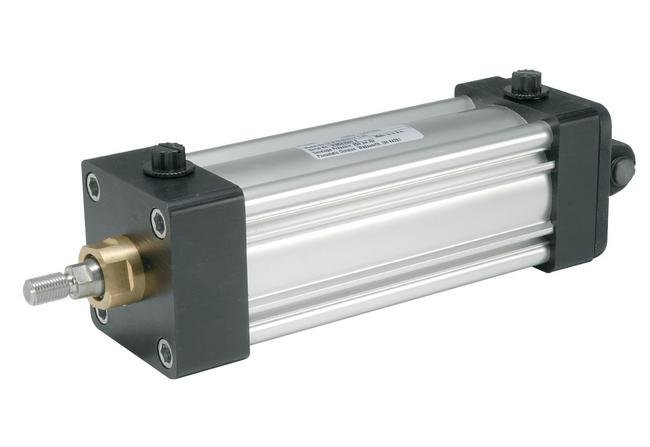

Parker 4MA Air Cylinder - 3-1/4'' Bore X 8'' Stroke

Name: Parker 4MA Air Cylinder - 3-1/4'' Bore X 8'' Stroke
Brand: Jamieson Equipment Co., Inc.
SKU: AIR-61a244
Price: 275.99 USD
Availability: OutOfStock

SKU:AIR-61a244

Rugged & versatile 3-1/4'' Bore X 8'' Stroke Parker 4MA Air Cylinder for industrial needs.

$275.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Parker 4MA Air Cylinder is a rugged and versatile solution designed for a wide range of applications. With a 3-1/4'' bore size and 8'' stroke length, this cylinder offers durability and high performance. Featuring carboxilated nitrile seals, a urethane rod wiper, and a piston wear band, it ensures low friction, leak-free operation, and extended service life. The aluminum body and end caps make it lightweight yet robust. The externally removable bronze gland allows for easy maintenance without disassembly. This cylinder is RoHS compliant and offers a variety of options including different rod diameters, custom designs, porting options, and more.

Product Specifications

Specifications Bore Size In

3-1/4

Specifications Description

3 1/4'' Bore X 8'' Stroke Air Cylinder with MP2 Cap Detachable Clevis, 1" Dia. Rod with 3/4-16 Small Male Thread, Non Cushioned

Specifications Manufacturer

Parker / Schrader Bellows

Specifications Piston Type

Lipseals and magnetic ring (aluminum piston)

Specifications Shipping Weight Lbs

14.00

Specifications Stroke Length In

8.00

Parker 4MA Air Cylinder - 3-1/4'' Bore X 8'' Stroke
