Parker Adapter RA for Fractional Tube - FNPT to NPT, 1-1/4 Female to 1 Male, Brass/Steel
Parker Adapter RA for Fractional Tube - FNPT to NPT, 1-1/4 Female to 1 Male, Brass/Steel
SKU:FIT-f93bd0
Precision-engineered Parker Adapter RA for leak-free industrial connections. NPT threads, brass/steel materials, ANSI compliant.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Parker Adapter RA for Fractional Tube - FNPT to NPT, 1-1/4 Female to 1 Male, Brass/Steel
$24.99
Quantity: 1
Claim Your Seller Account
Parker Adapter RA for Fractional Tube - FNPT to NPT, 1-1/4 Female to 1 Male, Brass/Steel
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Adapter RA is a precision-engineered instrument pipe fitting designed for leak-free connections in industrial applications. Crafted from high-quality materials like brass and steel, it meets rigorous ASTM standards. This adapter ensures reliable performance, with working pressures up to 3700 psig. Featuring NPT threads, these fittings exceed ANSI requirements, making them ideal for process control and instrumentation setups.
Product Specifications

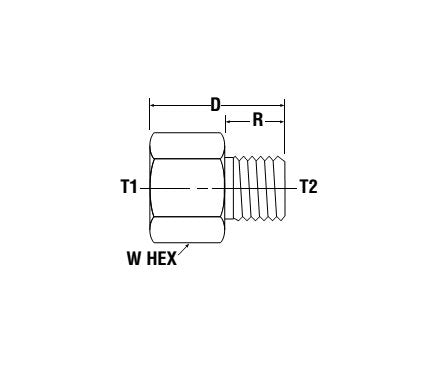

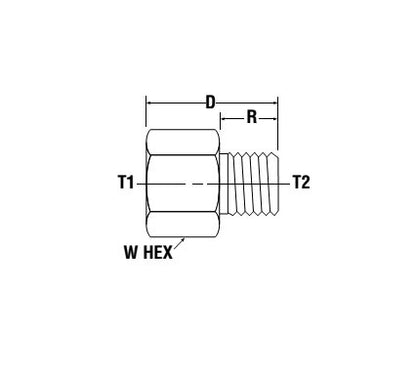

Dimensions Connection Type
FNPT to NPT
Dimensions D
2.47 in
Dimensions Npt Thread Female T1
1 1/4
Dimensions Npt Thread Male T2
1
Dimensions R
.94 in
Dimensions Working Pressure Brass
2300 psig
Dimensions Working Pressure Stainless Steel
3500 psig
Dimensions Working Pressure Steel
3700 psig
Dimensions W Hex
2 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
