Parker Adapter RA for Fractional Tube - FNPT to NPT, 1/2" Female to 1/8" Male
Parker Adapter RA for Fractional Tube - FNPT to NPT, 1/2" Female to 1/8" Male
SKU:FIT-e5ecce
Precision Parker Adapter RA for leak-free instrumentation connections, meeting ANSI standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Parker Adapter RA for Fractional Tube - FNPT to NPT, 1/2" Female to 1/8" Male
$29.99
Quantity: 1
Claim Your Seller Account
Parker Adapter RA for Fractional Tube - FNPT to NPT, 1/2" Female to 1/8" Male
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Adapter RA is a precision-engineered instrumentation pipe fitting designed for leak-free connections in process, power, and industrial applications. Manufactured to the highest quality standards, it offers a broad range of sizes and materials including steel and brass. This adapter is ideal for instrumentation connections, meeting stringent Power and Refiner Piping Code standards. Packaged in sealed, clear plastic for cleanliness, it features NPT threads exceeding ANSI requirements, with male threads rolled for extra strength. With working pressures up to 5500 psig, this adapter ensures reliability and durability in diverse settings.
Product Specifications

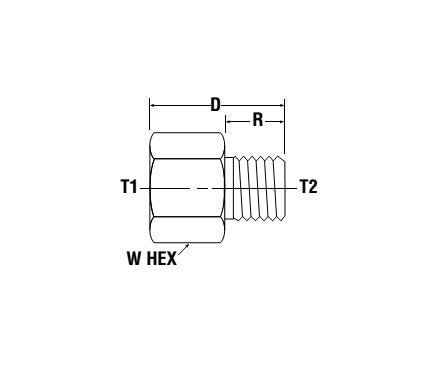

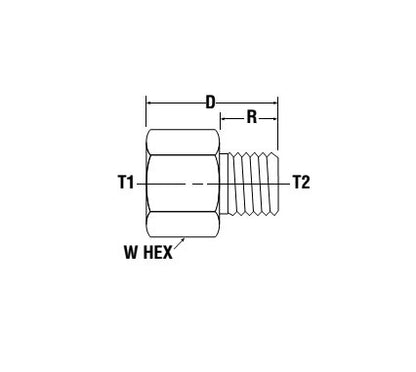

Dimensions Connection Type
FNPT to NPT
Dimensions D
1.50 in
Dimensions Npt Thread Female T1
1/2
Dimensions Npt Thread Male T2
1/8
Dimensions R
.38 in
Dimensions Working Pressure Brass
3600 psig
Dimensions Working Pressure Stainless Steel
5200 psig
Dimensions Working Pressure Steel
5500 psig
Dimensions W Hex
1 1/8 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
