Parker Adapter RA for Fractional Tube - FNPT to NPT, 3/4" Female to 3/8" Male
Parker Adapter RA for Fractional Tube - FNPT to NPT, 3/4" Female to 3/8" Male
SKU:FIT-9f21f5
Precision-engineered Parker Adapter RA for leak-free connections in instrumentation applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Parker Adapter RA for Fractional Tube - FNPT to NPT, 3/4" Female to 3/8" Male
$29.99
Quantity: 1
Claim Your Seller Account
Parker Adapter RA for Fractional Tube - FNPT to NPT, 3/4" Female to 3/8" Male
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Adapter RA is a precision-engineered instrumentation pipe fitting designed to provide leak-free connections for process, power, instrumentation, and industrial applications. Made from high-quality steel or brass, these fittings offer exceptional durability and reliability. With working pressures up to 4600 psig, they meet stringent industry standards for quality and performance. Packaged in sealed containers and crafted with precision machining, the Adapter RA ensures secure and efficient connections between pipe and tube sizes.
Product Specifications

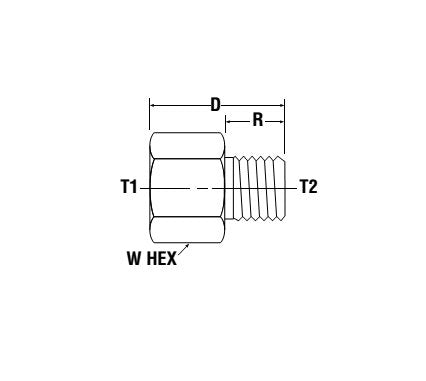

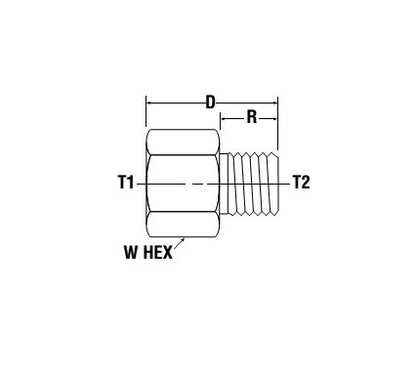

Dimensions Connection Type
FNPT to NPT
Dimensions D
1.75 in
Dimensions Npt Thread Female T1
3/4
Dimensions Npt Thread Male T2
3/8
Dimensions R
.56 in
Dimensions Working Pressure Brass
3000 psig
Dimensions Working Pressure Stainless Steel
4300 psig
Dimensions Working Pressure Steel
4600 psig
Dimensions W Hex
1 3/8 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
