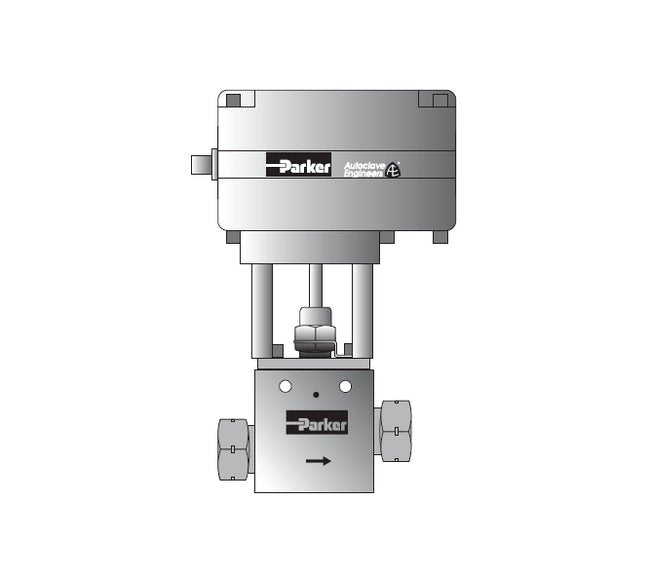

Parker Autoclave Engineers MAN Series Electric Flow Regulating Actuator (FRC)
Parker Autoclave Engineers MAN Series Electric Flow Regulating Actuator (FRC)
SKU:VAL-84e834
Revolutionary Parker Autoclave Engineers MAN Series FRC Actuator - Precise, Remote Valve Control, Weather/Explosion-Proof, CSA Compliant
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Parker Autoclave Engineers MAN Series Electric Flow Regulating Actuator (FRC)
$799.99
Quantity: 1
Claim Your Seller Account
Parker Autoclave Engineers MAN Series Electric Flow Regulating Actuator (FRC)
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Autoclave Engineers MAN Series Electric Flow Regulating Actuator (FRC) revolutionizes valve control with its All-Electric Regulating/Full Closure design. Eliminating the need for cumbersome pneumatic systems, this actuator offers precise remote control for MPI™ connection style needle valves. Available in both Weather-Proof and Explosion-Proof versions, it features a durable aluminum housing, 24VDC operation, 4-20mA input/output signals, and a robust BLDC motor. With a life expectancy of 250,000 cycles, Oiled-For-Life Bearings, and compliance with CSA, Nema, and explosion-proof standards, this actuator ensures reliable performance in demanding environments.
Product Specifications

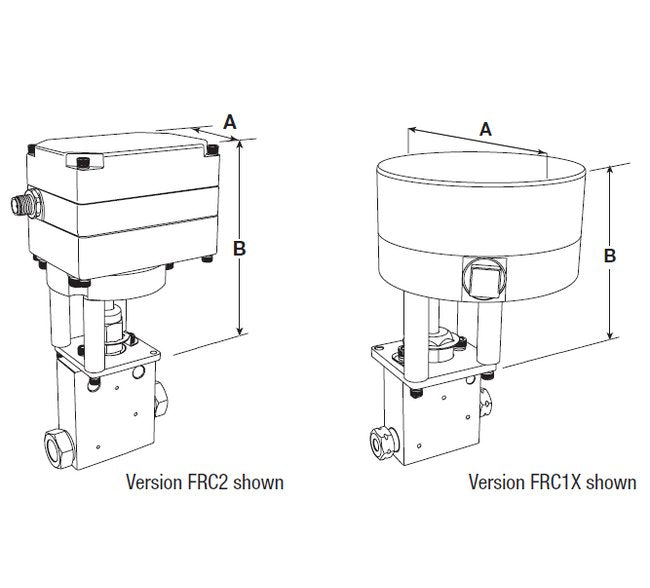

Dimensions A
3.00 in
Dimensions B
5.57 in
Dimensions Version
Weather-Proof, High Torque
Specifications Electrical Specifications
Electrical Input: 24VDC only, 72 Watt maximum Control Input: 4-20mA Position Feedback: Independent 4-20mA Position Detection: Hall Sensors Motor: BLDC brushless DC motor
Specifications Features And Benefits
24 VDC, 72 Watt Max Operation (5 wire) 4-20mA Remotely Powered Input Signal Internally Powered 4-20mA Output of Exact Position Oiled-For-Life Bearings (Bronze) and Gears (Sintered) Weather-Proof Aluminum Housing Explosion-Proof Cas Aluminum Anodized Nema 8/IP67 CSA Approved, Class 1 Div 1 Groups B, C, D Life Expectancy - 250,000 Cycles MTF
Specifications Mechanical Specifications
Standard Enclosure - EPD Coated NEMA 4/IP65 Equivalent Optional Anodized Aluminum Explosion-Proof Enclosure, Nema 8/IP67, CSA Approved for Class 1, Groups B, C, D /T6 Areas 500+ Positions per turn (+/- 0.25° Position Accuracy), 3243 Actuator Positions over Full Span Speed Range: 3 to 15 seconds/turn Operational Temperature -40°(-40°C) to 160°F(70°C), Valve Temperature not to exceed 600°F Actuator Life Expectancy: 250,000 cycles Gears and Bearings are Lifetime Lubricated 20 ft. cable included with 6 pin/5 wire connector (FRC1 and FRC2 only)
Specifications Position On Powerloss
Remembers Last Position Reseats Valve if Signal is Between 3.0 and 4.16mA
