Parker Autoclave Engineers MAN Series Electric Flow Regulating Actuator (FRC)
Parker Autoclave Engineers MAN Series Electric Flow Regulating Actuator (FRC)
SKU:VAL-b95355
Cutting-edge Electric Flow Regulating Actuator for precise valve control in industrial environments.
Regular price
$549.99
Regular price
Sale price
$549.99
Unit price
per
Initiate Order
Parker Autoclave Engineers MAN Series Electric Flow Regulating Actuator (FRC)
$549.99
Quantity: 1
Claim Your Seller Account
Parker Autoclave Engineers MAN Series Electric Flow Regulating Actuator (FRC)
$549.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Autoclave Engineers MAN Series Electric Flow Regulating Actuator provides a cutting-edge solution for remote control of needle valves, eliminating the need for cumbersome pneumatic-electric systems. This all-electric actuator, available in Weather-Proof or Explosion-Proof versions, integrates seamlessly with MPI™ connection style needle valves. With features like 4-20mA signal compatibility, oiled-for-life bearings and gears, and robust aluminum housing, this actuator offers precise control and durability in diverse environments. Designed for efficiency and reliability, it meets the stringent performance requirements of industrial applications.
Product Specifications

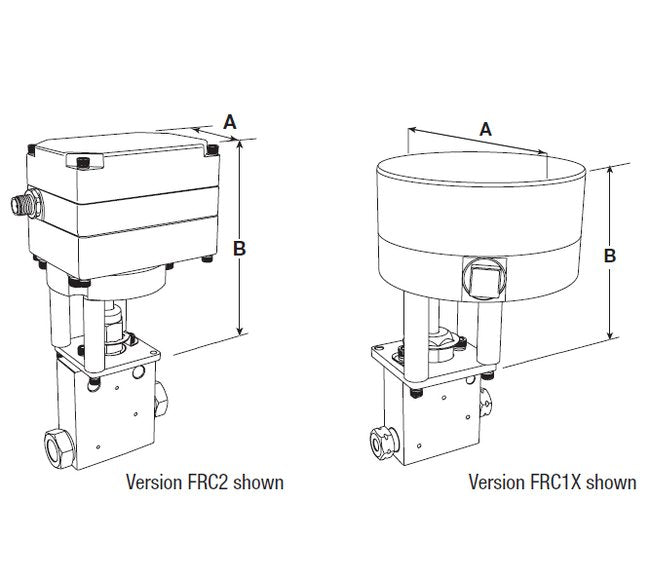

Dimensions A
4.25 in
Dimensions B
5.86 in
Dimensions Version
Explosion-Proof, High Torque
Specifications Electrical Specifications
Electrical Input: 24VDC only, 72 Watt maximum Control Input: 4-20mA Position Feedback: Independent 4-20mA Position Detection: Hall Sensors Motor: BLDC brushless DC motor
Specifications Features And Benefits
24 VDC, 72 Watt Max Operation (5 wire) 4-20mA Remotely Powered Input Signal Internally Powered 4-20mA Output of Exact Position Oiled-For-Life Bearings (Bronze) and Gears (Sintered) Weather-Proof Aluminum Housing Explosion-Proof Cas Aluminum Anodized Nema 8/IP67 CSA Approved, Class 1 Div 1 Groups B, C, D Life Expectancy - 250,000 Cycles MTF
Specifications Mechanical Specifications
Standard Enclosure - EPD Coated NEMA 4/IP65 Equivalent Optional Anodized Aluminum Explosion-Proof Enclosure, Nema 8/IP67, CSA Approved for Class 1, Groups B, C, D /T6 Areas 500+ Positions per turn (+/- 0.25° Position Accuracy), 3243 Actuator Positions over Full Span Speed Range: 3 to 15 seconds/turn Operational Temperature -40°(-40°C) to 160°F(70°C), Valve Temperature not to exceed 600°F Actuator Life Expectancy: 250,000 cycles Gears and Bearings are Lifetime Lubricated 20 ft. cable included with 6 pin/5 wire connector (FRC1 and FRC2 only)
Specifications Position On Powerloss
Remembers Last Position Reseats Valve if Signal is Between 3.0 and 4.16mA
