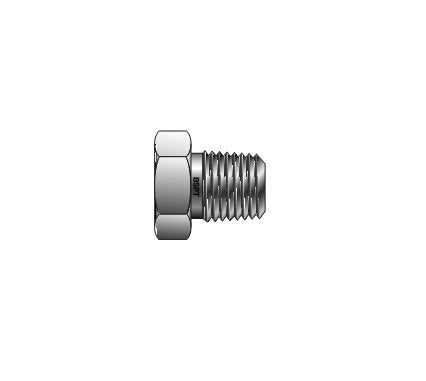

Parker BSP Male Hex Pipe Plug for ISO Conversion - 3/8-19 BSPT Thread
Parker BSP Male Hex Pipe Plug for ISO Conversion - 3/8-19 BSPT Thread
SKU:FIT-64ad1f
Premium Parker BSP Male Hex Pipe Plug for ISO/NPT Conversion, Stainless Steel/Brass, Reliable & Leak-Resistant
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Parker BSP Male Hex Pipe Plug for ISO Conversion - 3/8-19 BSPT Thread
$29.99
Quantity: 1
Claim Your Seller Account
Parker BSP Male Hex Pipe Plug for ISO Conversion - 3/8-19 BSPT Thread
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker BSP Taper Male Hex Pipe Plug is a premium-quality component designed for seamless connections between NPT and ISO configurations, meeting the highest industry standards. Crafted from durable stainless steel or brass, this plug ensures reliable performance at pressures up to 5000 psi. With precise dimensions and a robust design, it offers a secure fit with leak-resistant joints, making it ideal for critical applications where pressure integrity is paramount.

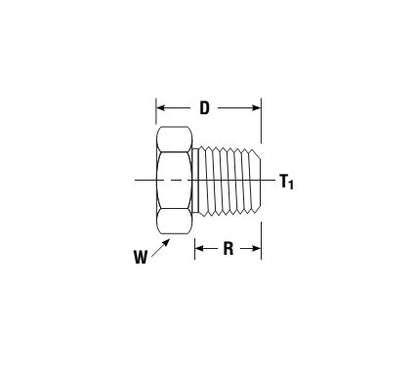

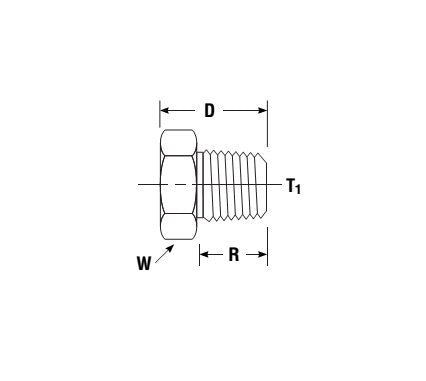

Product Specifications
Dimensions Bspt Thread T1
3/8-19
Dimensions Connection Type
BSPT
Dimensions D
.81 in
Dimensions R
.56 in
Dimensions Working Pressure Brass
2600 psi | 180 bar
Dimensions Working Pressure Stainless Steel
5000 psi | 340 bar
Dimensions W Hex
3/4 in
Specifications Design
Parker ISO Conversion Fittings are designed to the most commonly used ISO thread forms. These thread forms are used where pressure tight joints are either made on threads utilizing a thread sealant or where pressure tight joints utilize a peripheral seal on the face of the mating component.
Specifications Material
Parker ISO Conversion Fittings are standard in stainless steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
