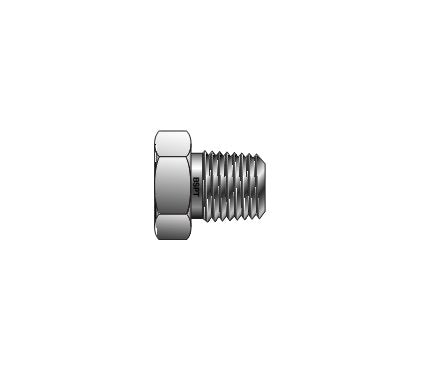

Parker BSP Taper Male Hex Pipe Plug
Parker BSP Taper Male Hex Pipe Plug
SKU:FIT-8654c3
Upgrade your system with the Parker BSP Taper Male Hex Pipe Plug for secure and durable ISO Conversion fitments.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Parker BSP Taper Male Hex Pipe Plug
$29.99
Quantity: 1
Claim Your Seller Account
Parker BSP Taper Male Hex Pipe Plug
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker BSP Taper Male Hex Pipe Plug is a premium quality ISO Conversion Fitting designed to facilitate seamless connections in systems with NPT and ISO Thread configurations. Crafted to the highest standards, this fitting ensures reliable performance and durability. It features BSPT thread type, a W HEX of 7/16 in, and working pressures of up to 6100 psi in stainless steel. With precision engineering and compliance with ASTM specifications, this fitting guarantees a secure and efficient join.

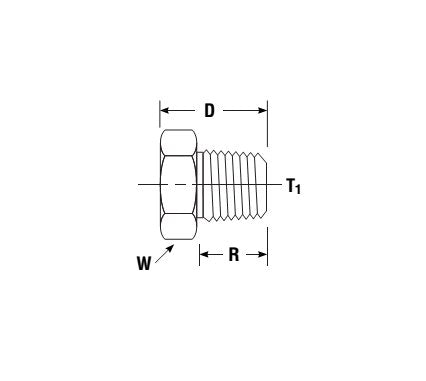

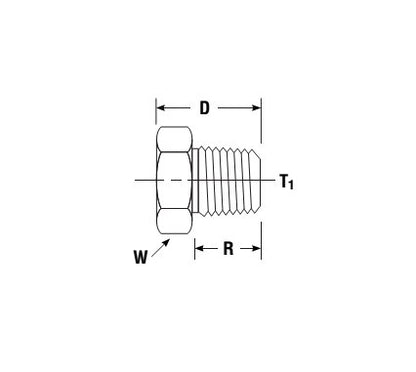

Product Specifications
Dimensions Bspt Thread T1
1/8-28
Dimensions Connection Type
BSPT
Dimensions D
.59 in
Dimensions R
.38 in
Dimensions Working Pressure Brass
3200 psi | 220 bar
Dimensions Working Pressure Stainless Steel
6100 psi | 420 bar
Dimensions W Hex
7/16 in
Specifications Design
Parker ISO Conversion Fittings are designed to the most commonly used ISO thread forms. These thread forms are used where pressure tight joints are either made on threads utilizing a thread sealant or where pressure tight joints utilize a peripheral seal on the face of the mating component.
Specifications Material
Parker ISO Conversion Fittings are standard in stainless steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
