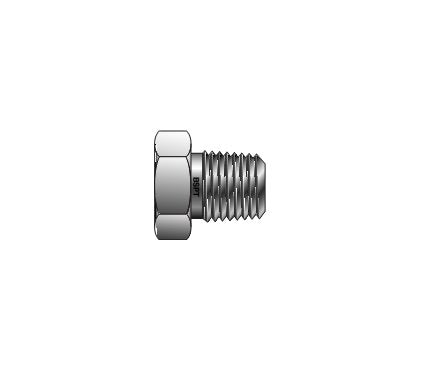

Parker BSP Taper Male Hex Pipe Plug
Parker BSP Taper Male Hex Pipe Plug
SKU:FIT-6baed7
High-quality Parker BSP Taper Male Hex Pipe Plug for seamless NPT to ISO Thread connections, with robust materials and superior pressure tolerance. ASTM-compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Parker BSP Taper Male Hex Pipe Plug
$29.99
Quantity: 1
Claim Your Seller Account
Parker BSP Taper Male Hex Pipe Plug
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker BSP Taper Male Hex Pipe Plug is a precision-engineered ISO Conversion Fitting designed to facilitate seamless connections between components utilizing NPT and ISO Thread configurations. Crafted from high-quality stainless steel or brass, these fittings offer a reliable solution for institutions requiring pressure-tight joints. With working pressures of up to 4100 psi, superior quality control, and compatibility with ASTM standards, these fittings ensure optimal performance and durability in diverse operational environments.

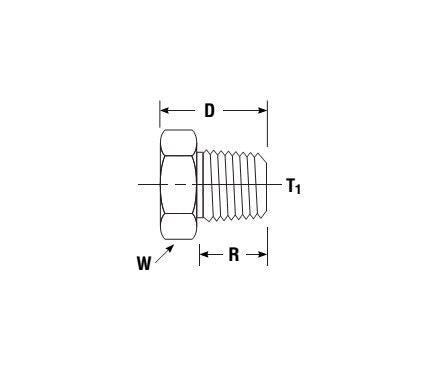

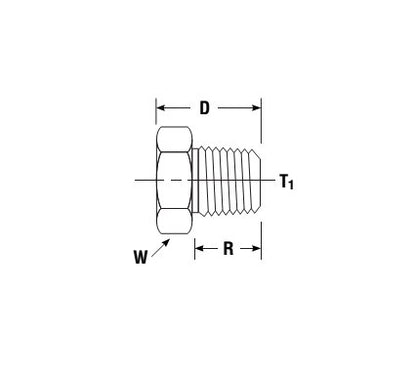

Product Specifications
Dimensions Bspt Thread T1
1-11
Dimensions Connection Type
BSPT
Dimensions D
1.31 in
Dimensions R
.94 in
Dimensions Working Pressure Brass
2200 psi | 150 bar
Dimensions Working Pressure Stainless Steel
4100 psi | 280 bar
Dimensions W Hex
1 3/8 in
Specifications Design
Parker ISO Conversion Fittings are designed to the most commonly used ISO thread forms. These thread forms are used where pressure tight joints are either made on threads utilizing a thread sealant or where pressure tight joints utilize a peripheral seal on the face of the mating component.
Specifications Material
Parker ISO Conversion Fittings are standard in stainless steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
