Parker BSPP Female Gauge Adapter Tube Connector 1/4-19
Parker BSPP Female Gauge Adapter Tube Connector 1/4-19
SKU:FIT-73f1f2
Reliable Parker BSPP Female Gauge Adapter for secure tube-to-thread connections in NPT and ISO systems. Ensures leak-free, precise sealing in stainless steel and brass for reliable performance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Parker BSPP Female Gauge Adapter Tube Connector 1/4-19
$29.99
Quantity: 1
Claim Your Seller Account
Parker BSPP Female Gauge Adapter Tube Connector 1/4-19
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker BSPP Female Gauge Adapter is an essential component designed to exacting standards for seamless connections in systems using NPT and ISO threads. This high-quality conversion fitting ensures precision and durability, connecting fractional tube ends to male ISO parallel threads effortlessly. Featuring a pre-grooved tube stub and a copper washer for secure sealing, this fitting meets stringent quality control measures and is available in stainless steel and brass. Trust Parker for reliable, leak-free connections that adhere to industry standards.
Product Specifications

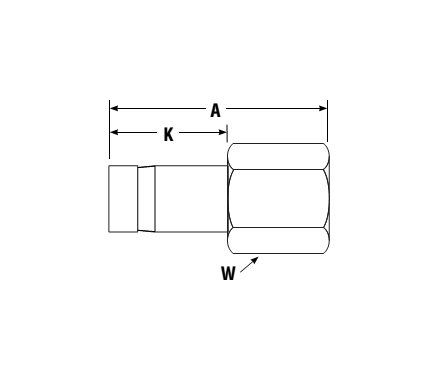

Dimensions A
1.34 in
Dimensions Bspp Thread
1/4-19
Dimensions Connection Type
Tube to FBSPP
Dimensions K
.63 in
Dimensions Min Bore
.16 in
Dimensions Tube Od
1/4 in
Dimensions W Hex
3/4 in
Specifications Design
Parker ISO Conversion Fittings are designed to the most commonly used ISO thread forms. These thread forms are used where pressure tight joints are either made on threads utilizing a thread sealant or where pressure tight joints utilize a peripheral seal on the face of the mating component.
Specifications Material
Parker ISO Conversion Fittings are standard in stainless steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
