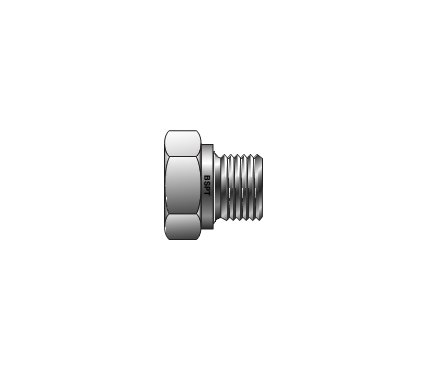

Parker BSPP Parallel Male Hex Pipe Plug
Parker BSPP Parallel Male Hex Pipe Plug
SKU:FIT-1854ef
High-quality Parker BSPP Parallel Male Hex Pipe Plug for leak-proof connections between NPT and ISO Thread configurations. Pressure ratings up to 6400 psi.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Parker BSPP Parallel Male Hex Pipe Plug
$39.99
Quantity: 1
Claim Your Seller Account
Parker BSPP Parallel Male Hex Pipe Plug
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker BSPP Parallel Male Hex Pipe Plug is crafted to the highest quality standards for seamless connections between NPT and ISO Thread configurations. This conversion fitting ensures leak-proof joints, with pressure ratings reaching up to 6400 psi. Designed for durability, it features steel and brass construction, meeting ASTM bar stock specifications. Note: Use bonded seal on BSPP end for optimal performance.
Product Specifications

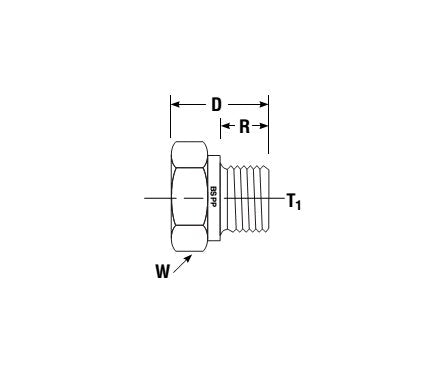

Dimensions Bspp Thread T1
3/4-14
Dimensions Connection Type
BSPP
Dimensions D
1.13 in
Dimensions R
.63 in
Dimensions Working Pressure Brass
3600 psi | 250 bar
Dimensions Working Pressure Stainless Steel
6400 psi | 440 bar
Dimensions W Hex
1 5/16 in
Specifications Design
Parker ISO Conversion Fittings are designed to the most commonly used ISO thread forms. These thread forms are used where pressure tight joints are either made on threads utilizing a thread sealant or where pressure tight joints utilize a peripheral seal on the face of the mating component.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
