Parker Clariflow®-E Hydrophilic PES Membrane Filter Cartridges
Parker Clariflow®-E Hydrophilic PES Membrane Filter Cartridges
SKU:PLE-51e007
High-flow, long-lasting Parker Clariflow®-E Hydrophilic PES Cartridges for microelectronics applications.
Regular price
$95.99
Regular price
Sale price
$95.99
Unit price
per
Initiate Order
Parker Clariflow®-E Hydrophilic PES Membrane Filter Cartridges
$95.99
Quantity: 1
Claim Your Seller Account
Parker Clariflow®-E Hydrophilic PES Membrane Filter Cartridges
$95.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Clariflow®-E Cartridges are designed for microelectronics applications, offering high flow rates and exceptional on-stream lifetime. With a hydrophilic PES membrane and all-polypropylene support structure, these cartridges ensure consistent removal of organic and inorganic particulates. Featuring a low level of extractables, broad chemical compatibility, and resistance to particle shedding, each cartridge is meticulously fabricated in a clean room, pre-flushed with ultrapure DI water, and 100% integrity tested in an ISO-certified facility. Ideal for DI water, aqueous-based chemicals, and more.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Applications 0
BOEDilute HFPOU DI rinseBulk DI water systemsCopper platingNi platingHard disk wash processesOther dilute acids and bases
Benefits 0
High-retention hydrophilic membraneHigh flow rateBroad chemical compatibility for multiple applicationsLong on-stream life100% integrity tested
Materials Of Construction Membrane
Polyethersulfone
Materials Of Construction Structure
Polypropylene
Materials Of Construction Support Layers
Polypropylene
Note 0
Specifications are subject to change without notification.Clariflow is a registered trademark of Parker Hannifin Corporation.Viton is a registered trademark of E.I. DuPont de Nemours & Co., Inc.Cuno is a registered trademark of Cuno Inc.
Specifications Cleanliness Particle Shedding
Dry-packed: < 1 particles/ml > 0.2µm after 6gal at 1gpmData as from open bag and installed, no additional installation flushing.
Specifications Effective Filtration Area Per 10 Inch 250 Mm Cart
6.8 ft² | 0.63 m²
Specifications End Fittings
DOE
Specifications Filter Rating
0.02 µm | 0.04 µm | 0.10 µm | 0.2 µm | 0.45 µm | 0.65 µm | 0.8 µm
Specifications Gasketo Ring Material
Buna N | EPDM | FEP Encapsulated Silicone (O-Rings only) | FEP Encapsulated Viton (O-Rings only) | None | Silicone | Viton®
Specifications Insert Style
Encapsulated Polysulfone
Specifications Maximum Forward Differential Pressuretemperature
80 psid | 5.5 bar
Specifications Maximum Reverse Differential Pressuretemperature
50 psid | 3.4 bar
Specifications Nominal Length
30 in | 750 mm
Specifications Resistivity Rinse Up
Resistivity rinse-up to background minus 0.2megohm-cm of feed after 20gal @ 1gpm.
Specifications Thickness Gaskets Only
0.125" (3 mm) | 0.200" (5 mm) | (1) 0.200" (5 mm) & (1) 0.125" (3 mm) | No Gasket

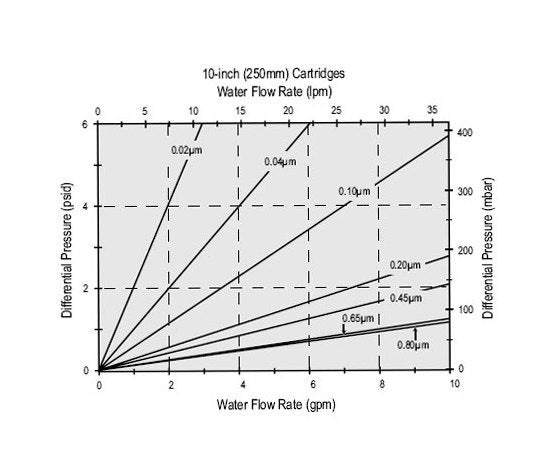

Specifications Water Flow Rates
0.02 µm - 0.5 gpm/psid (2.75 lpm/100mbar) | 0.04 µm - 1.0 gpm/psid (5.49 lpm/100mbar) | 0.10 µm - 1.8 gpm/psid (9.88 lpm/100mbar) | 0.20 µm - 3.7 gpm/psid (20.31 lpm/100mbar) | 0.45 µm - 4.8 gpm/psid (26.35 lpm/100mbar) | 0.65 µm - 8.9 gpm/psid (48.86 lpm/100mbar) | 0.80 µm - 9.5 gpm/psid (52.16 lpm/100mbar)
Technical Support And Product Information 0
Parker Hannifin Corporation provides our customers with unsurpassed product consistency and cost-efficiency. Our experienced professionals can help you select the right solution for your application. For more information or to place an order, contact your local distributor. Information on product specifications, applications and chemical compatibility can be found on our web site at www.parker.com or through your nearest Parker Hannifin Corporation office.Parker Hannifin Corporation designs and manufactures an extensive line of innovative solutions for specific applications in the Microelectronics, Biopharmaceutical, Food and Beverage, Industrial and Chemical industries.
