Parker Female BSP Taper to Male NPT Adapter
Parker Female BSP Taper to Male NPT Adapter
SKU:FIT-3c9da8
High-quality Parker ISO Conversion Adapter for secure BSP to NPT connections in industrial settings.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Parker Female BSP Taper to Male NPT Adapter
$24.99
Quantity: 1
Claim Your Seller Account
Parker Female BSP Taper to Male NPT Adapter
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Female BSP Taper to Male NPT Adapter is a premium-quality ISO conversion fitting designed to facilitate connections between components with NPT and ISO thread configurations. Crafted to stringent quality standards, this fitting ensures reliable performance and seamless compatibility. Made from durable stainless steel or brass, it offers a working pressure of up to 4300 psi, making it ideal for demanding industrial applications. With precise dimensions and a thoughtful design, this adapter guarantees a secure and leak-free connection every time.
Product Specifications

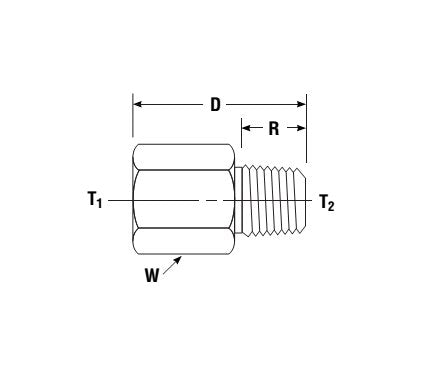

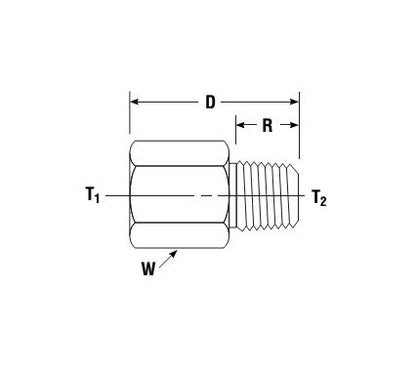

Dimensions Bspt Thread T1
3/4-14
Dimensions Connection Type
FBSPT x MNPT
Dimensions D
2.00 in
Dimensions Npt Thread T2
3/4-14
Dimensions R
.75 in
Dimensions Working Pressure Brass
2300 psi | 160 bar
Dimensions Working Pressure Stainless Steel
4300 psi | 300 bar
Dimensions W Hex
1 5/16 in
Specifications Design
Parker ISO Conversion Fittings are designed to the most commonly used ISO thread forms. These thread forms are used where pressure tight joints are either made on threads utilizing a thread sealant or where pressure tight joints utilize a peripheral seal on the face of the mating component.
Specifications Material
Parker ISO Conversion Fittings are standard in stainless steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
