Parker Female BSP Taper to Male NPT Adapter
Parker Female BSP Taper to Male NPT Adapter
SKU:FIT-2462b9
Achieve precision connections with the Parker Female BSP Taper to Male NPT Adapter, designed for optimal performance and durability.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Parker Female BSP Taper to Male NPT Adapter
$29.99
Quantity: 1
Claim Your Seller Account
Parker Female BSP Taper to Male NPT Adapter
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Female BSP Taper to Male NPT Adapter is expertly crafted to facilitate seamless connections between components with NPT and ISO Thread configurations. Designed to the highest quality standards, these ISO conversion fittings ensure reliable performance and durability. Made from stainless steel or brass, the adapter features FBSPT x MNPT connection type, precise dimensions, and exceptional working pressure ratings. Ideal for bridging different threading systems with precision and efficiency, Parker ISO Conversion Fittings are the go-to choice for demanding industrial applications.
Product Specifications

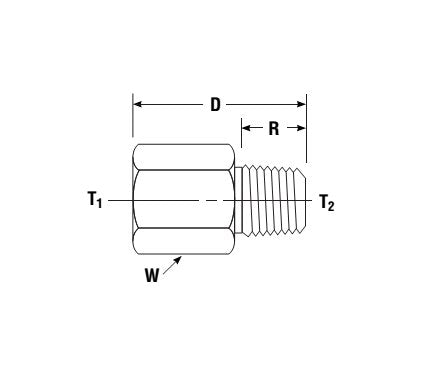

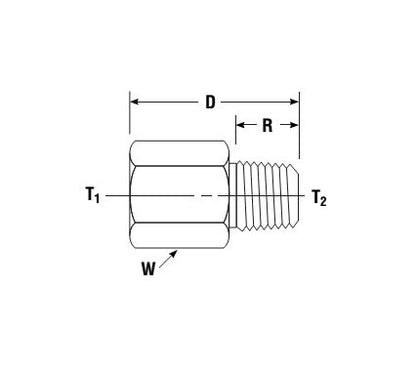

Dimensions Bspt Thread T1
1/4-19
Dimensions Connection Type
FBSPT x MNPT
Dimensions D
1.42 in
Dimensions Npt Thread T2
1/4-18
Dimensions R
.56 in
Dimensions Working Pressure Brass
3300 psi | 230 bar
Dimensions Working Pressure Stainless Steel
6200 psi | 430 bar
Dimensions W Hex
3/4 in
Specifications Design
Parker ISO Conversion Fittings are designed to the most commonly used ISO thread forms. These thread forms are used where pressure tight joints are either made on threads utilizing a thread sealant or where pressure tight joints utilize a peripheral seal on the face of the mating component.
Specifications Material
Parker ISO Conversion Fittings are standard in stainless steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
