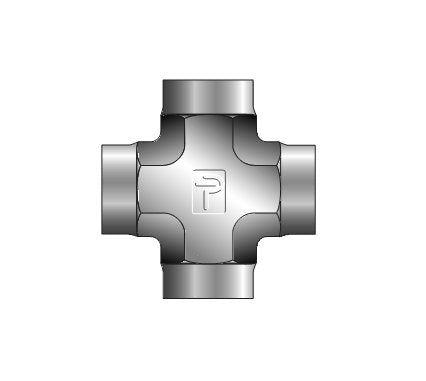

Parker Female Cross FX Pipe Fittings
Parker Female Cross FX Pipe Fittings
SKU:FIT-5d842d
Precision-engineered Parker Female Cross FX Pipe Fittings for leak-free connections in instrumentation and industrial applications. ANSI standards compliant.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.


The Parker Female Cross FX Pipe Fittings are precision-engineered for leak-free connections essential for process, power, instrumentation, and industrial applications. Manufactured to meet the highest quality standards using ASTM bar stock and close grain forgings, these fittings ensure reliability and durability. With working pressures reaching up to 4800 psig, the diverse range of sizes, materials, and configurations available cater to a wide array of institutional procurement needs. Packaged in sealed, clear plastic shrink-wrapped boxes, these fittings are meticulously crafted to comply with ANSI standards and exceed industry requirements, making them an ideal choice for critical instrumentation connections.
Product Specifications
Dimensions Connection Type
FNPT x FNPT x FNPT x FNPT

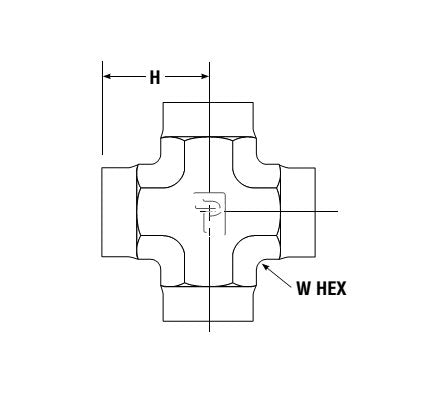

Dimensions H
1.23 in
Dimensions Npt Thread Female
1/2
Dimensions Working Pressure Brass
2500 psig
Dimensions Working Pressure Stainless Steel
4500 psig
Dimensions Working Pressure Steel
4800 psig
Dimensions W Hex
1 1/16 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
