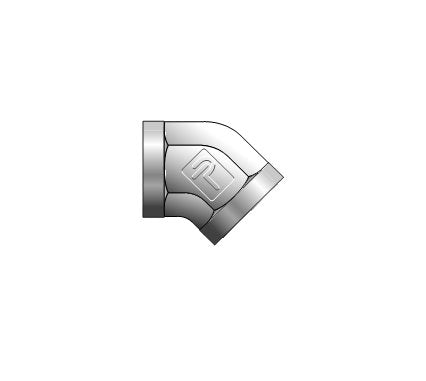

Parker Female Elbow 45° FVE for Fractional Tube - FNPT to FNPT, 1/8" NPT Thread Female
Parker Female Elbow 45° FVE for Fractional Tube - FNPT to FNPT, 1/8" NPT Thread Female
SKU:FIT-4fd8e8
Precision-engineered Parker Female Elbow 45° FVE for leak-free connections in instrumentation applications. ANSI standards compliant.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Parker Female Elbow 45° FVE for Fractional Tube - FNPT to FNPT, 1/8" NPT Thread Female
$24.99
Quantity: 1
Claim Your Seller Account
Parker Female Elbow 45° FVE for Fractional Tube - FNPT to FNPT, 1/8" NPT Thread Female
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Female Elbow 45° FVE is a precision-engineered instrumentation pipe fitting suitable for process, power, and industrial applications. Crafted from high-quality steel or brass, these fittings ensure leak-free connections. With a working pressure of up to 5900 psig, they meet ANSI B31.1 and B31.3 standards. Packaged in sealed boxes, these fittings are available in various sizes and materials for diverse applications.
Product Specifications
Dimensions Connection Type
FNPT to FNPT

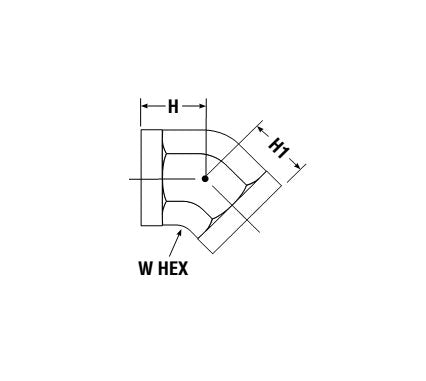

Dimensions H
.47 in
Dimensions H1
.47 in
Dimensions Npt Thread Female
1/8
Dimensions Working Pressure Brass
2900 psig
Dimensions Working Pressure Stainless Steel
5500 psig
Dimensions Working Pressure Steel
5900 psig
Dimensions W Hex
9/16 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
