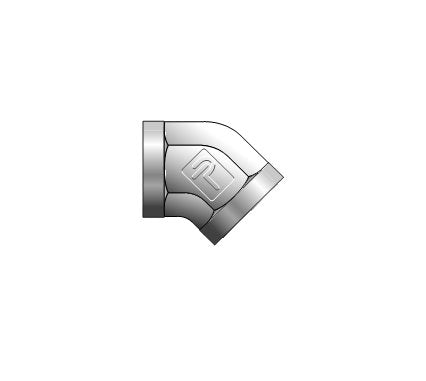

Parker Female Elbow 45° FVE for Fractional Tube - Industrial Grade Instrumentation Fitting
Parker Female Elbow 45° FVE for Fractional Tube - Industrial Grade Instrumentation Fitting
SKU:FIT-183cfa
Precision-made Parker Female Elbow 45° FVE for leak-free industrial connections. Available in multiple sizes and materials for process control needs.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
Parker Female Elbow 45° FVE for Fractional Tube - Industrial Grade Instrumentation Fitting
$25.99
Quantity: 1
Claim Your Seller Account
Parker Female Elbow 45° FVE for Fractional Tube - Industrial Grade Instrumentation Fitting
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Female Elbow 45° FVE is a top-quality instrumentation pipe fitting designed to provide leak-free connections for a wide range of industrial applications. Precision machined from forgings and bar stock, this fitting ensures reliability and durability. With working pressures up to 6000 psig, materials including 316 Stainless Steel, Brass, and Steel, and adherence to stringent quality control standards, this fitting is ideal for process control and instrumentation connections. Packaged securely in sealed, clear plastic shrink-wrapped boxes, this product is available in various sizes to meet your specific needs.
Product Specifications
Dimensions Connection Type
FNPT to FNPT

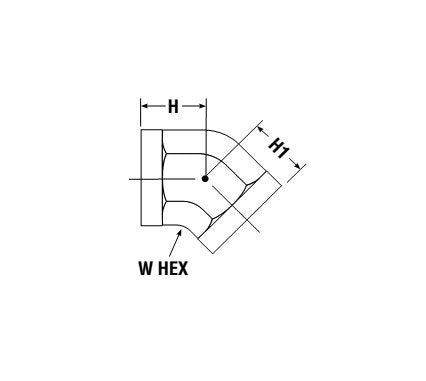

Dimensions H
.69 in
Dimensions H1
.69 in
Dimensions Npt Thread Female
1/4
Dimensions Working Pressure Brass
3000 psig
Dimensions Working Pressure Stainless Steel
5600 psig
Dimensions Working Pressure Steel
6000 psig
Dimensions W Hex
3/4 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
