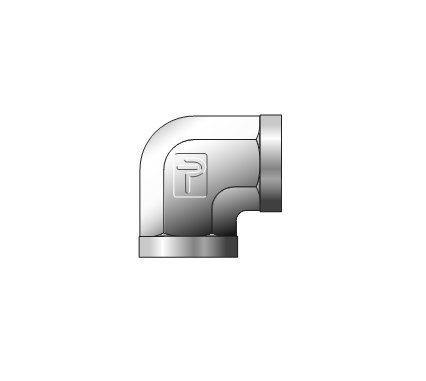

Parker Female Elbow FE Instrument Pipe Fitting 1/2" FNPT
Parker Female Elbow FE Instrument Pipe Fitting 1/2" FNPT
SKU:FIT-b90a6a
Precision-engineered Parker Female Elbow FE for leak-free, high-pressure instrumentation applications. Meets ANSI standards.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Parker Female Elbow FE Instrument Pipe Fitting 1/2" FNPT
$39.99
Quantity: 1
Claim Your Seller Account
Parker Female Elbow FE Instrument Pipe Fitting 1/2" FNPT
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Female Elbow FE Instrument Pipe Fitting is engineered for precision and reliability in instrumentation applications. This leak-free fitting boasts working pressures of up to 4800 psig, meeting stringent quality standards. Made from 316 stainless steel, brass, or steel, it offers durability and versatility for diverse industrial settings. With National Pipe Taper threads exceeding ANSI requirements, this fitting ensures a secure connection. Packaged in sealed boxes for cleanliness, it complies with ANSI B31.1 and B31.3 codes, making it ideal for government and institutional procurement.
Product Specifications
Dimensions Connection Type
FNPT to FNPT

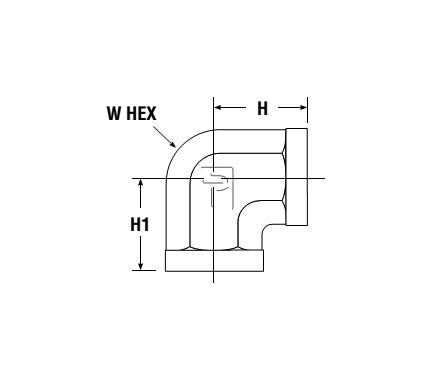

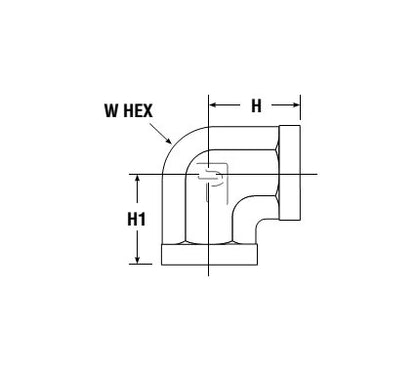

Dimensions H
1.23 in
Dimensions H1
1.23 in
Dimensions Npt Thread Female
1/2
Dimensions Working Pressure Brass
2500 psig
Dimensions Working Pressure Stainless Steel
4500 psig
Dimensions Working Pressure Steel
4800 psig
Dimensions W Hex
1 1/16 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
