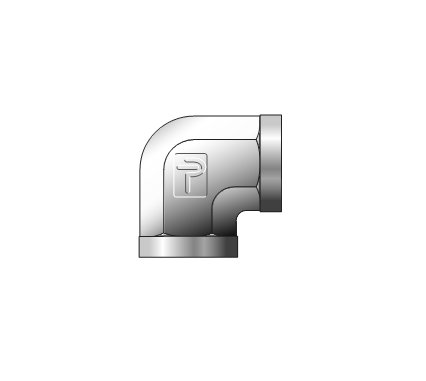

Parker Female Elbow FE Instrumentation Pipe Fitting
Parker Female Elbow FE Instrumentation Pipe Fitting
SKU:FIT-ad7b8b
Reliable Parker Female Elbow FE fitting for precise instrumentation connections in industrial applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Parker Female Elbow FE Instrumentation Pipe Fitting
$24.99
Quantity: 1
Claim Your Seller Account
Parker Female Elbow FE Instrumentation Pipe Fitting
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Female Elbow FE Instrumentation Pipe Fitting is engineered for precision and reliability in process, power, and instrumentation applications. Manufactured to exacting standards, it offers leak-free connections and superior performance. Crafted from high-quality steel and brass materials, this fitting meets rigorous ASTM specifications. With working pressures up to 7500 psig, this Parker fitting exceeds ANSI requirements for quality and strength. Ideal for industrial, government, and institutional use, it ensures efficient pipe and tube connections while maintaining durability and safety.
Product Specifications
Dimensions Connection Type
FNPT to FNPT

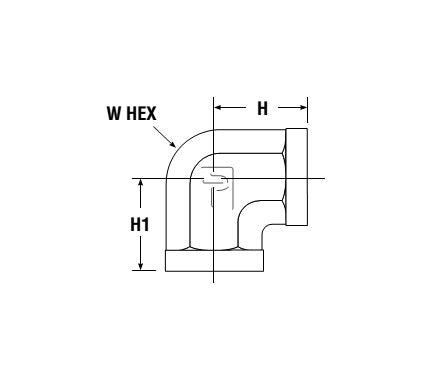

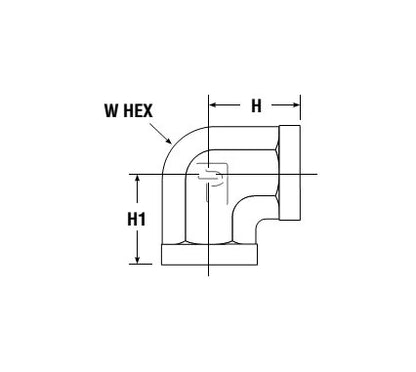

Dimensions H
.50 in
Dimensions H1
.50 in
Dimensions Npt Thread Female
1/16
Dimensions Working Pressure Brass
3800 psig
Dimensions Working Pressure Stainless Steel
7000 psig
Dimensions Working Pressure Steel
7500 psig
Dimensions W Hex
7/16 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
