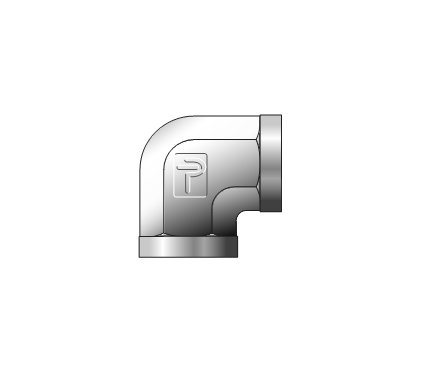

Parker Female Elbow FE Instrumentation Pipe Fitting
Parker Female Elbow FE Instrumentation Pipe Fitting
SKU:FIT-ee4e94
Precision-engineered Parker Female Elbow FE Instrumentation Pipe Fitting for leak-free connections in industrial applications. Quality material, reliable performance.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Parker Female Elbow FE Instrumentation Pipe Fitting
$59.99
Quantity: 1
Claim Your Seller Account
Parker Female Elbow FE Instrumentation Pipe Fitting
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Female Elbow FE Instrumentation Pipe Fitting offers precision, leak-free connections essential for process control and instrumentation applications in industrial settings. Engineered to the highest standards, this fitting is ideal for connecting pipes and tubes with superior strength and reliability. Crafted from quality materials like 316 Stainless Steel, Brass, or Steel, this fitting meets stringent procurement requirements and is designed to ensure optimal performance and durability in diverse environments.
Product Specifications

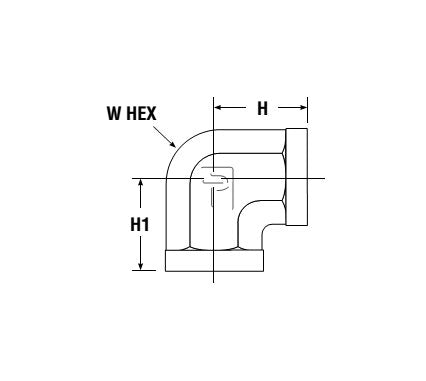

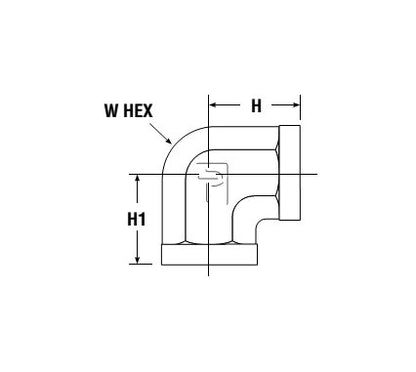

Dimensions Connection Type
FNPT to FNPT
Dimensions H
1.70 in
Dimensions H1
1.70 in
Dimensions Npt Thread Female
1 1/4
Dimensions Working Pressure Brass
1900 psig
Dimensions Working Pressure Stainless Steel
3100 psig
Dimensions Working Pressure Steel
3300 psig
Dimensions W Hex
1 7/8 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
