Parker Female Elbow FE - Instrumentation Pipe Fitting
Parker Female Elbow FE - Instrumentation Pipe Fitting
SKU:FIT-ec1f97
Precision-engineered Female Elbow FE for leak-free connections in process control. Durable, high-pressure fitting exceeding industry standards.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Parker Female Elbow FE - Instrumentation Pipe Fitting
$24.99
Quantity: 1
Claim Your Seller Account
Parker Female Elbow FE - Instrumentation Pipe Fitting
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

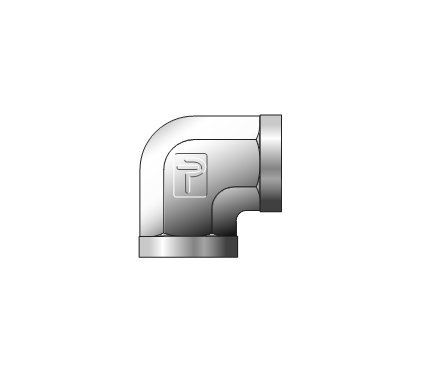

The Parker Female Elbow FE is a precision-engineered instrumentation pipe fitting designed for leak-free connections in process control and instrumentation applications. Made from high-quality materials such as steel and brass, this fitting ensures reliability and durability. With working pressures up to 5300 psig, it meets stringent industry standards and is available in a range of sizes. Packaged in sealed plastic boxes for cleanliness, this fitting exceeds ANSI requirements, making it ideal for institutional and government procurement needs.
Product Specifications

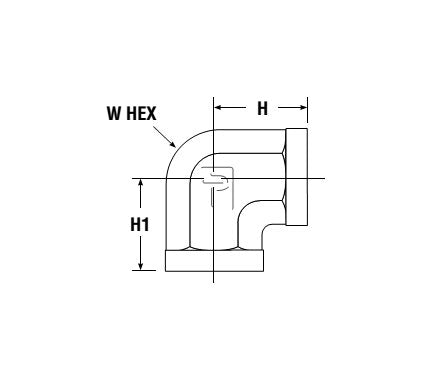

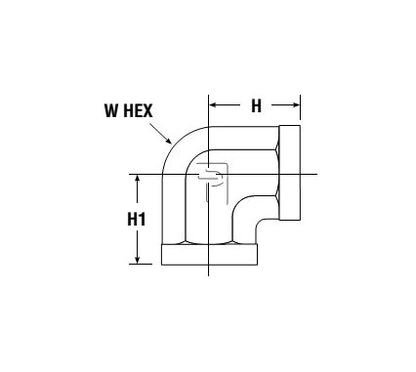

Dimensions Connection Type
FNPT to FNPT
Dimensions H
1.02 in
Dimensions H1
1.02 in
Dimensions Npt Thread Female
3/8
Dimensions Working Pressure Brass
2700 psig
Dimensions Working Pressure Stainless Steel
5000 psig
Dimensions Working Pressure Steel
5300 psig
Dimensions W Hex
7/8 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
