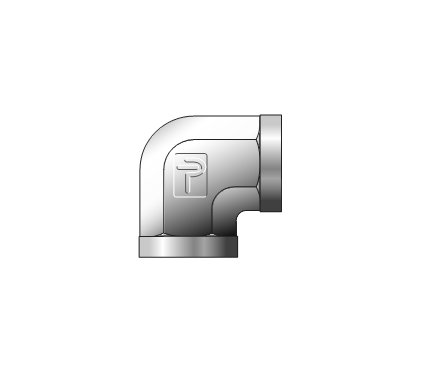

Parker Female Elbow FE Pipe Fitting 1 1/2" x 2"
Parker Female Elbow FE Pipe Fitting 1 1/2" x 2"
SKU:FIT-efb168
Premium Parker Female Elbow FE fitting for leak-free connections in industrial applications. Exceeds ANSI standards for durability and performance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Parker Female Elbow FE Pipe Fitting 1 1/2" x 2"
$29.99
Quantity: 1
Claim Your Seller Account
Parker Female Elbow FE Pipe Fitting 1 1/2" x 2"
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Female Elbow FE Pipe Fitting is a precision-engineered instrument fitting designed for seamless and leak-free connections in process, power, and industrial applications. Crafted from high-quality materials like brass and steel, these fittings adhere to strict ASTM standards. With a working pressure of up to 2600 psig, they are ideal for critical instrumentation connections. Packaged in sealed, clear boxes, ensuring cleanliness and quality, this fitting exceeds ANSI standards for pipe threads. Upgrade your piping system with Parker's reliable and durable Female Elbow FE fittings.
Product Specifications

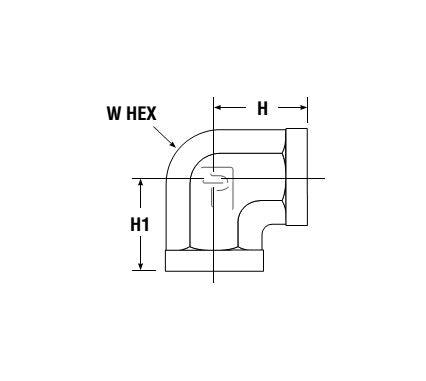

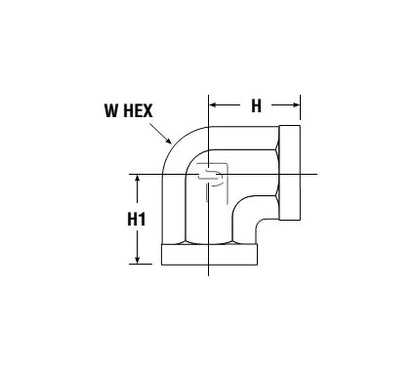

Dimensions Connection Type
FNPT to FNPT
Dimensions H
2.08 in
Dimensions H1
2.08 in
Dimensions Npt Thread Female
1 1/2
Dimensions Working Pressure Brass
1700 psig
Dimensions Working Pressure Stainless Steel
2500 psig
Dimensions Working Pressure Steel
2600 psig
Dimensions W Hex
2 1/2 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
