Parker Female Hex Coupling FHC 1/2" FNPT to 1/4" FNPT
Parker Female Hex Coupling FHC 1/2" FNPT to 1/4" FNPT
SKU:FIT-2d5e66
Precision-engineered Female Hex Coupling for leak-free connections in instrumentation applications. Meets ANSI standards.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Parker Female Hex Coupling FHC 1/2" FNPT to 1/4" FNPT
$45.99
Quantity: 1
Claim Your Seller Account
Parker Female Hex Coupling FHC 1/2" FNPT to 1/4" FNPT
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

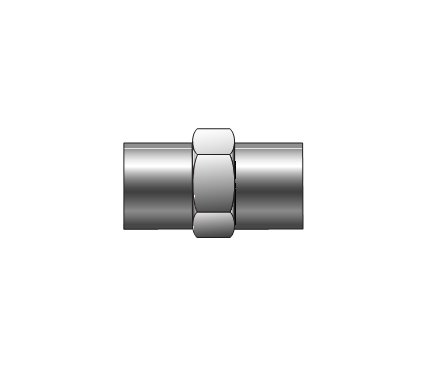

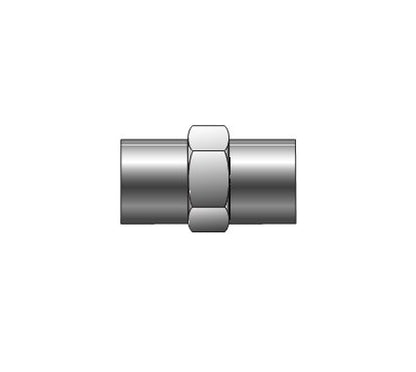

The Parker Female Hex Coupling FHC is a precision-engineered pipe fitting ideal for process control and instrumentation applications in industrial settings. Manufactured to the highest quality standards, this coupling ensures leak-free connections with working pressures up to 5500 psig. Made from 316 stainless steel, brass, or steel, it offers durability and reliability. Packaged in sealed, clear plastic boxes, this fitting meets ANSI B1.20.1 and B31.1/B31.3 standards, making it a trustworthy choice for a wide range of applications.
Product Specifications

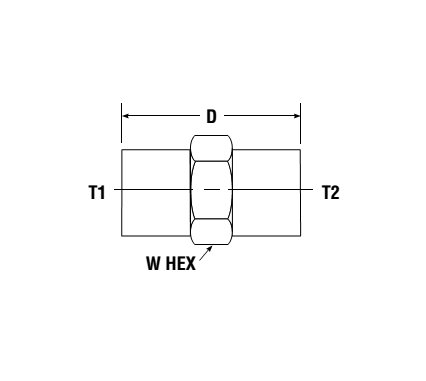

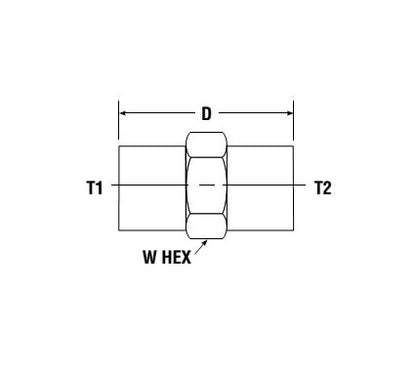

Dimensions Connection Type
FNPT to FNPT
Dimensions D
1.38 in
Dimensions Npt Thread Male T1
1/2
Dimensions Npt Thread Male T2
1/4
Dimensions Working Pressure Brass
3600 psig
Dimensions Working Pressure Stainless Steel
5200 psig
Dimensions Working Pressure Steel
5500 psig
Dimensions W Hex
1 1/8 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
