Parker Female Hex Coupling FHC - FNPT to FNPT, Stainless Steel, 1" x 3/8"
Parker Female Hex Coupling FHC - FNPT to FNPT, Stainless Steel, 1" x 3/8"
SKU:FIT-c1f93a
Precision-engineered Parker Female Hex Coupling FHC for leak-free instrumentation connections. Stainless steel, 4800 psig.
Regular price
$35.99
Regular price
Sale price
$35.99
Unit price
per
Initiate Order
Parker Female Hex Coupling FHC - FNPT to FNPT, Stainless Steel, 1" x 3/8"
$35.99
Quantity: 1
Claim Your Seller Account
Parker Female Hex Coupling FHC - FNPT to FNPT, Stainless Steel, 1" x 3/8"
$35.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

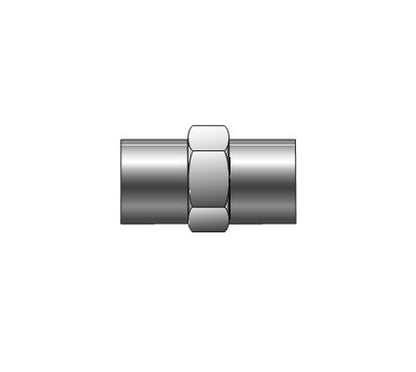

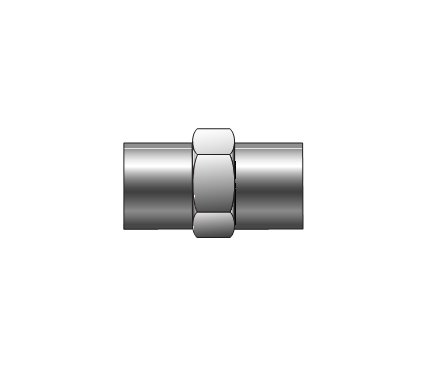

The Parker Female Hex Coupling FHC is an essential component for precise instrumentation connections in industrial applications. Crafted from high-quality steel and available in stainless steel, it offers leak-free connections with working pressures up to 4800 psig. Engineered to meet ANSI standards, this fitting ensures reliability and durability in process control systems.

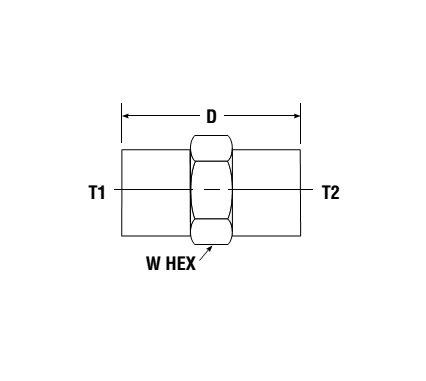

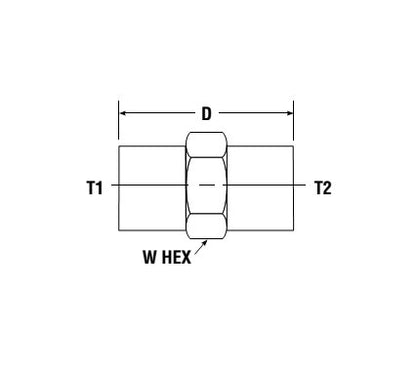

Product Specifications
Dimensions Connection Type
FNPT to FNPT
Dimensions D
1.63 in
Dimensions Npt Thread Male T1
1
Dimensions Npt Thread Male T2
3/8
Dimensions Working Pressure Brass
3100 psig
Dimensions Working Pressure Stainless Steel
4500 psig
Dimensions Working Pressure Steel
4800 psig
Dimensions W Hex
1 5/8 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
