Parker Female Hex Coupling - FNPT to FNPT, 1/4", Brass/Steel
Parker Female Hex Coupling - FNPT to FNPT, 1/4", Brass/Steel
SKU:FIT-a18c66
Precision-engineered Female Hex Coupling for leak-free instrumentation connections in various sizes & materials. Reliable & durable.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Parker Female Hex Coupling - FNPT to FNPT, 1/4", Brass/Steel
$29.99
Quantity: 1
Claim Your Seller Account
Parker Female Hex Coupling - FNPT to FNPT, 1/4", Brass/Steel
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

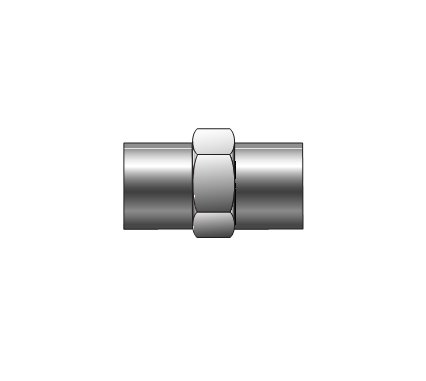

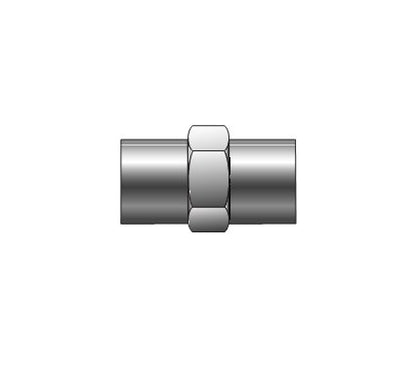

The Parker Female Hex Coupling is a precision-engineered instrument pipe fitting designed to provide leak-free connections for process control and instrumentation applications. Manufactured to the highest quality standards, this coupling is available in various sizes and materials including brass and steel. With working pressures meeting industry standards, this fitting is ideal for applications requiring reliability and durability.
Product Specifications

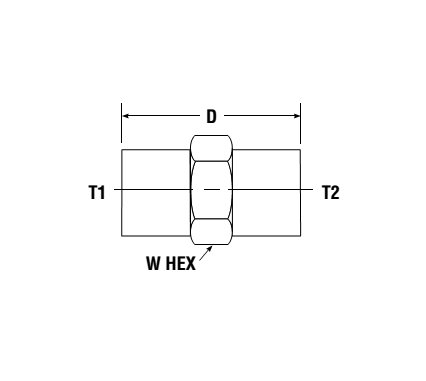

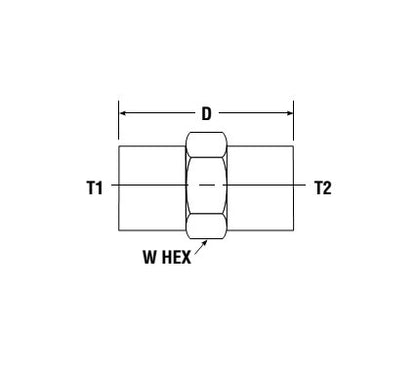

Dimensions Connection Type
FNPT to FNPT
Dimensions D
1.13 in
Dimensions Npt Thread Male T1
1/4
Dimensions Npt Thread Male T2
1/4
Dimensions Working Pressure Brass
4300 psig
Dimensions Working Pressure Stainless Steel
6600 psig
Dimensions Working Pressure Steel
7000 psig
Dimensions W Hex
3/4 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
