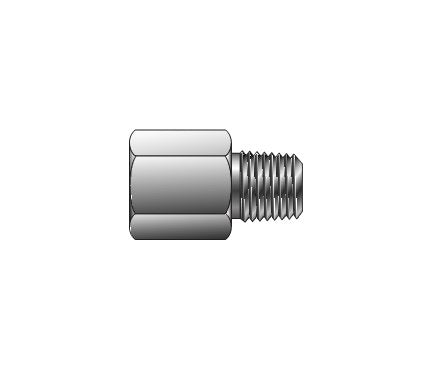

Parker Female NPT to Male BSP Taper Adapter
Parker Female NPT to Male BSP Taper Adapter
SKU:FIT-e4506d
High-quality Parker adapter ensuring leak-proof connections between components with NPT and ISO threads. Durable stainless steel or brass construction for reliable performance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Parker Female NPT to Male BSP Taper Adapter
$29.99
Quantity: 1
Claim Your Seller Account
Parker Female NPT to Male BSP Taper Adapter
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Female NPT to Male BSP Taper Adapter is crafted to highest standards, facilitating seamless connections between components with NPT and ISO threads. Designed for precision and durability, this adapter ensures leak-proof joints and reliable performance. Made from high-quality stainless steel or brass, it complies with industry regulations for optimal functionality and longevity, making it an essential fitting for industrial applications.

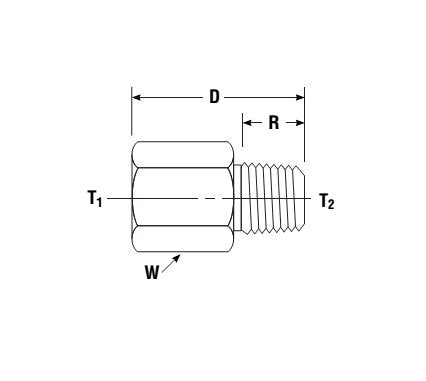

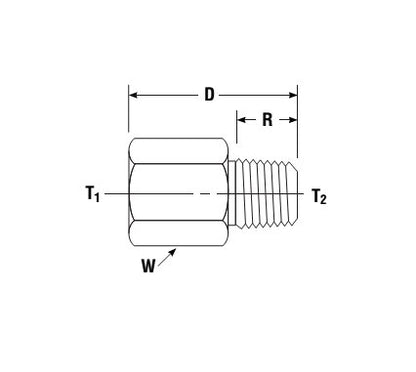

Product Specifications
Dimensions Bspt Thread T2
1/4-19
Dimensions Connection Type
FNPT to BSPT
Dimensions D
1.42 in
Dimensions Npt Thread T1
1/4-18
Dimensions R
.56 in
Dimensions Working Pressure Brass
3300 psi | 230 bar
Dimensions Working Pressure Stainless Steel
6200 psi | 430 bar
Dimensions W Hex
3/4 in
Specifications Design
Parker ISO Conversion Fittings are designed to the most commonly used ISO thread forms. These thread forms are used where pressure tight joints are either made on threads utilizing a thread sealant or where pressure tight joints utilize a peripheral seal on the face of the mating component.
Specifications Material
Parker ISO Conversion Fittings are standard in stainless steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
