Parker Female NPT to Male BSPP Adapter
Parker Female NPT to Male BSPP Adapter
SKU:FIT-e6c0f8

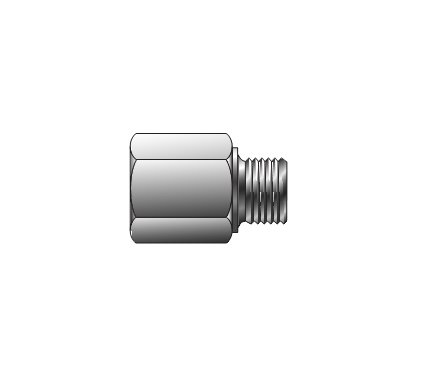

Precision-made Parker Female NPT to Male BSPP Adapter for secure connections between NPT and BSPP threads. High-quality stainless steel or brass construction.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Parker Female NPT to Male BSPP Adapter
$29.99
Quantity: 1
Claim Your Seller Account
Parker Female NPT to Male BSPP Adapter
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Female NPT to Male BSPP Adapter is an essential component designed to meet the highest quality standards for connecting systems with both NPT and ISO threads. Utilizing stainless steel or brass materials, this ISO conversion fitting ensures pressure-tight joints with precision engineering. With working pressures up to 6100 psi, this adapter guarantees reliable performance in demanding industrial environments, making it ideal for applications requiring secure connections between male NPT and female BSPP threaded components.

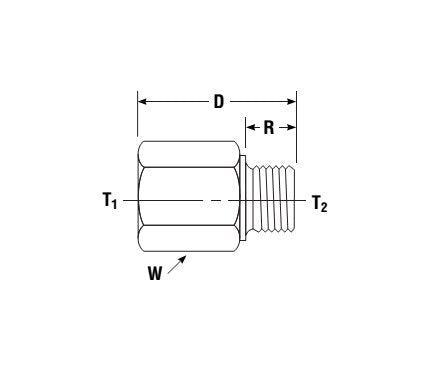

Product Specifications
Dimensions Bspp Thread T2
1/8-28
Dimensions Connection Type
FNPT x BSPP
Dimensions D
.99 in
Dimensions Npt Thread T1
1/8-27
Dimensions R
.28 in
Dimensions Working Pressure Brass
3200 psi | 220 bar
Dimensions Working Pressure Stainless Steel
6100 psi | 420 bar
Dimensions W Hex
9/16 in
Specifications Design
Parker ISO Conversion Fittings are designed to the most commonly used ISO thread forms. These thread forms are used where pressure tight joints are either made on threads utilizing a thread sealant or where pressure tight joints utilize a peripheral seal on the face of the mating component.
Specifications Material
Parker ISO Conversion Fittings are standard in stainless steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
