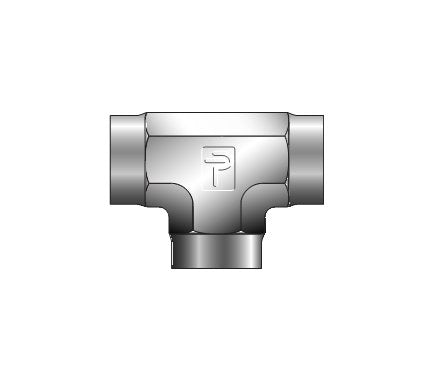

Parker Female Tee FT Instrumentation Pipe Fitting
Parker Female Tee FT Instrumentation Pipe Fitting
SKU:FIT-e4a40f
Precision-engineered Parker Female Tee FT fitting for leak-free connections in process, power, instrumentation applications. High-quality material, up to 3700 psig working pressure, ANSI compliant.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
Parker Female Tee FT Instrumentation Pipe Fitting
$25.99
Quantity: 1
Claim Your Seller Account
Parker Female Tee FT Instrumentation Pipe Fitting
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Female Tee FT Instrumentation Pipe Fitting is a precision-engineered solution for leak-free connections in process, power, and industrial applications. Crafted from high-quality materials, this fitting meets stringent quality standards. With a working pressure of up to 3700 psig in steel, it ensures reliable performance. Engineered for instrumentation applications, it complies with ANSI standards, offers exceptional durability, and is available in various sizes and materials for versatile usage.
Product Specifications

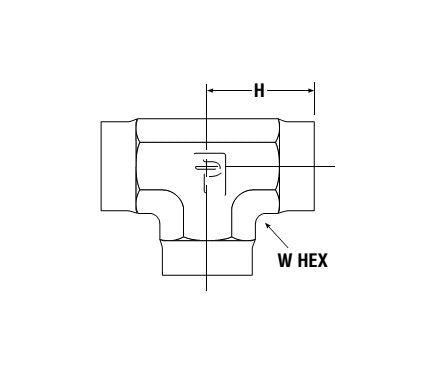

Dimensions Connection Type
FNPT x FNPT x FNPT
Dimensions H
1.36 in
Dimensions Npt Thread Female
3/4
Dimensions Working Pressure Brass
2000 psig
Dimensions Working Pressure Stainless Steel
3500 psig
Dimensions Working Pressure Steel
3700 psig
Dimensions W Hex
1 5/16 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
