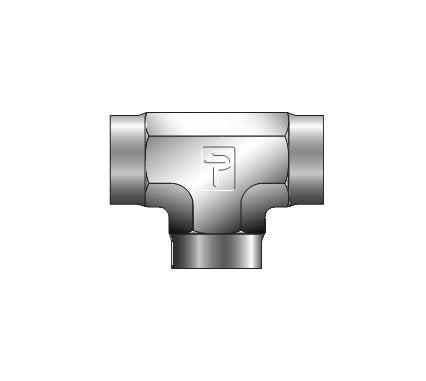

Parker Female Tee FT Instrumentation Pipe Fitting
Parker Female Tee FT Instrumentation Pipe Fitting
SKU:FIT-ce87cb
Upgrade your system with Parker's precision-engineered Female Tee FT fittings for leak-free precision in your applications.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Parker Female Tee FT Instrumentation Pipe Fitting
$34.99
Quantity: 1
Claim Your Seller Account
Parker Female Tee FT Instrumentation Pipe Fitting
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Female Tee FT Instrumentation Pipe Fitting is engineered for precision and reliability in process, power, instrumentation, and industrial applications. Made from high-quality steel and brass, these leak-free fittings offer superior performance under high working pressures. Precision machined to meet ASTM standards, they ensure seamless connections between pipe and tube sizes. Packaged in clear plastic wrap for cleanliness, these fittings meet ANSI standards for thread quality and are designed to exceed industry requirements. Upgrade your system with Parker's precision-engineered Female Tee FT fittings.
Product Specifications
Dimensions Connection Type
FNPT x FNPT x FNPT

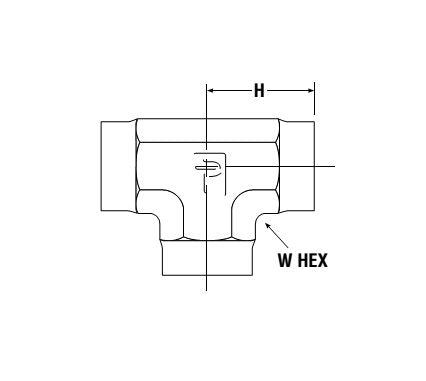

Dimensions H
1.02 in
Dimensions Npt Thread Female
3/8
Dimensions Working Pressure Brass
2700 psig
Dimensions Working Pressure Stainless Steel
5000 psig
Dimensions Working Pressure Steel
5300 psig
Dimensions W Hex
7/8 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
