The Parker Female Tee FT Instrumentation Pipe Fitting is engineered to provide leak-free connections for process, power, and instrumentation applications. Precision-machined from high-quality materials, these fittings are designed to meet the stringent requirements of industrial settings. With working pressures up to 7500 psig, various material options, and compliance with ANSI standards, these fittings ensure reliable and durable performance in demanding environments.
Product Specifications
Dimensions Connection Type
FNPT x FNPT x FNPT

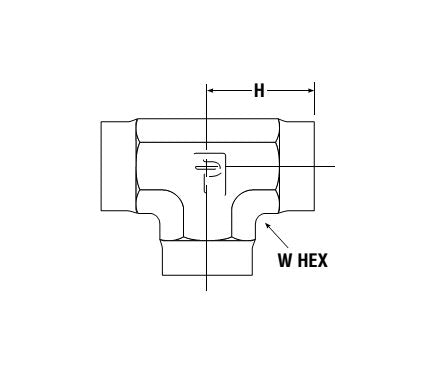

Dimensions H
.50 in
Dimensions Npt Thread Female
1/16
Dimensions Working Pressure Brass
3800 psig
Dimensions Working Pressure Stainless Steel
7000 psig
Dimensions Working Pressure Steel
7500 psig
Dimensions W Hex
7/16 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
