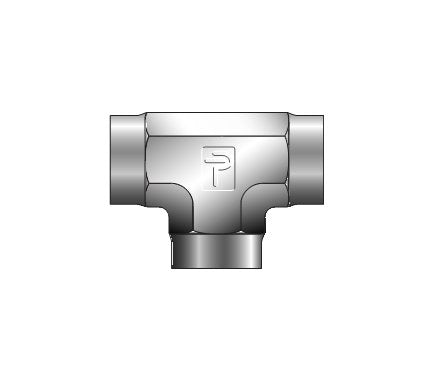

Parker Female Tee FT Instrumentation Pipe Fitting
Parker Female Tee FT Instrumentation Pipe Fitting
SKU:FIT-16519f
Quality meets precision with Parker Female Tee FT Instrumentation Pipe Fitting. Leak-free connections for process and instrumentation applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Parker Female Tee FT Instrumentation Pipe Fitting
$24.99
Quantity: 1
Claim Your Seller Account
Parker Female Tee FT Instrumentation Pipe Fitting
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Female Tee FT Instrumentation Pipe Fitting is meticulously crafted for precision and reliability in process control and instrumentation applications. Engineered with quality in mind, these fittings ensure leak-free connections, meeting the demanding standards of various industries. Manufactured in compliance with ASTM specifications and National Pipe Taper (NPT) threads, these fittings are available in materials such as 316 Stainless Steel, Brass, and Steel, with working pressures up to 4200 psig. Packaged for cleanliness and protection, these fittings are ideal for power, instrumentation, and industrial applications.
Product Specifications

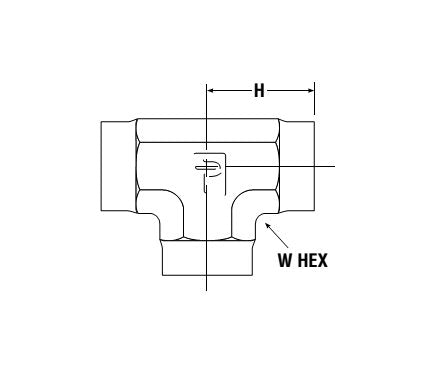

Dimensions Connection Type
FNPT x FNPT x FNPT
Dimensions H
1.63 in
Dimensions Npt Thread Female
1
Dimensions Working Pressure Brass
2300 psig
Dimensions Working Pressure Stainless Steel
3900 psig
Dimensions Working Pressure Steel
4200 psig
Dimensions W Hex
1 5/8 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
