Parker Fluoroflow HSA Filter Cartridges
Parker Fluoroflow HSA Filter Cartridges
SKU:PLE-4e8271
Enhanced all-fluoropolymer filter cartridges for aggressive applications, offering increased performance and longevity.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Parker Fluoroflow HSA Filter Cartridges
$49.99
Quantity: 1
Claim Your Seller Account
Parker Fluoroflow HSA Filter Cartridges
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Fluoroflow HSA Filter Cartridges are designed to meet the demands of aggressive applications with increased performance and longevity. With over 40% more surface area than the standard Fluoroflow, these cartridges offer higher flow rates and extended filter life. Constructed with 100% fluoropolymer and offering various temperature and treatment options, including Ultraclean wet-packing for minimal metals extractables, these cartridges ensure excellent chemical resistance up to 180°C. Ideal for wet etch and clean processes involving acids and solvents, these cartridges provide enhanced filtration efficiency, integrity testing, and quick installation for consistent quality.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Applications 0
Wet etch and clean.- Phosphoric acid- Sulfuric acid- Hydrofluoric acid- Nitric acid- Piranha- SC1, SC2- NMP-based solventsOther high temperature or ozonated processes
Benefits 0
Increased filtration area for longer lifeHigher flow rates for increased bath turn overWet-pack option for quick installationUltraclean wet-pack option for absolute cleanlinessAll-fluoropolymer for most maximum chemical resistance100% integrity tested for consistent quality
Note 0
Specifications are subject to change without notificationFluoroflow is a registered trademark of Parker Hannifin Corporation.Viton and Kalrez are registered trademarks of E.I. DuPont de Nemours & Co., Inc.Chemraz is a registered trademark of Green, Tweed Inc.
Specifications Cleanliness Particle Shedding
Wet-packed: < 2 particles/ml > 0.2µm after 7gal at 1gpm
Specifications Effective Filtration Area Per 10 Inch 250 Mm Cart
9.8 ft² | 0.91 m²
Specifications Effective Filtration Area Per 4 Inch 100 Mm Cartr
4.8 ft² | 0.45 m²
Specifications End Fittings
226/Fin
Specifications Filter Rating
1 µm
Specifications Materials Of Construction
100% Fluoropolymer constructionAll components are thermally bonded to ensure integrity and reduce extractables.
Specifications Maximum Forward Differential Pressuretemperature
100 psid | 6.8 bar
Specifications Maximum Reverse Differential Pressuretemperature
50 psid | 3.4 bar
Specifications Metals Extractables
Standard: < 20ppb (total) | Ultraclean: < 5ppb (total)
Specifications Nominal Length
40 in | 1000 mm
Specifications O Rings Material
Chemraz® | FEP-Encapsulated Silicone | FEP-Encapsulated Viton | Kalrez | None | Silicone | Viton®
Specifications Temperature Options
Electronic Standard (150ºC Max)
Specifications Treatment Options
Ozone UPW Flush and Dried | Ultraclean (Pre-Wet) | UPW Flush and Dried | Wet Packed

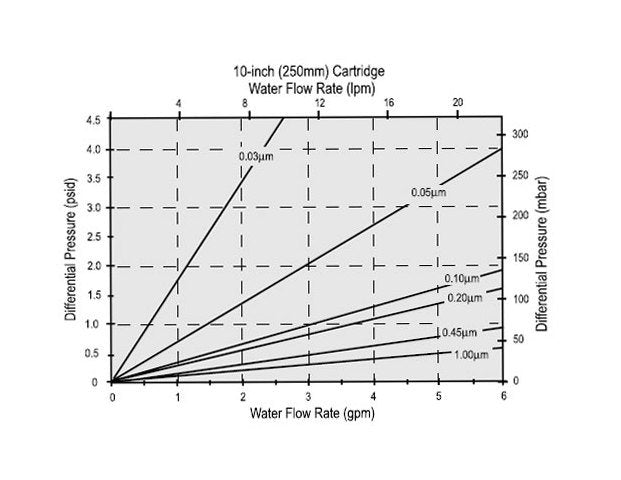

Specifications Water Flow Rates
10.0 gpm/psid | 55.0 lpm/100 mbar
Technical Support And Product Information 0
Parker Hannifin Corporation provides our customers with unsurpassed product consistency and cost-efficiency. Our experienced professionals can help you select the right solution for your application. For more information or to place an order, contact your local distributor. Information on product specifications, applications and chemical compatibility can be found on our web site at www.parker.com or through your nearest Parker Hannifin Corporation office.Parker Hannifin Corporation designs and manufactures an extensive line of innovative solutions for specific applications in the Microelectronics, Biopharmaceutical, Food and Beverage, Industrial and Chemical industries.
Tocresistivity Rinse Up Wet Packed 0
TOC recovery within 3-5ppb of feed without additional rinse-up. Resistivity recovery within 0.4 megohm-cm of feed after 22gal @ 1gpm.
