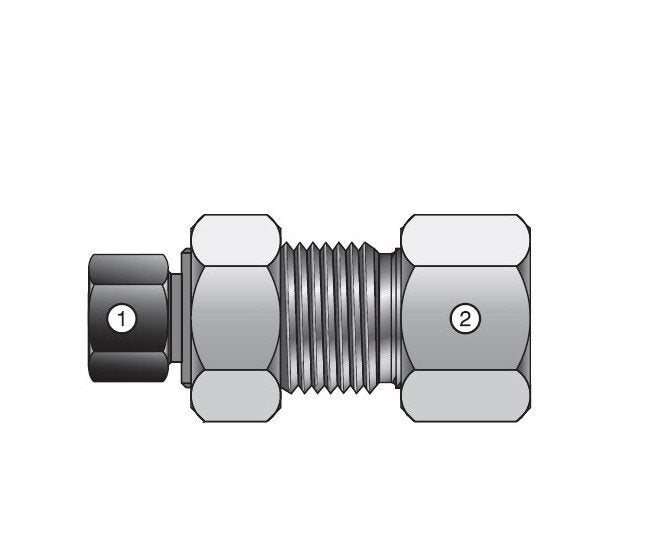

Parker Hannifin GH2BMP7 MPI™ Bulkhead to Female NPT Connector
Parker Hannifin GH2BMP7 MPI™ Bulkhead to Female NPT Connector
SKU:FIT-7dac8a
Parker's GH2BMP7 MPI™ Bulkhead to Female NPT Connector offers secure, gas-tight connections up to 15,000 psi. Compliant with ASME standards, corrosion-resistant, and easy to assemble.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Parker Hannifin GH2BMP7 MPI™ Bulkhead to Female NPT Connector
$49.99
Quantity: 1
Claim Your Seller Account
Parker Hannifin GH2BMP7 MPI™ Bulkhead to Female NPT Connector
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Hannifin GH2BMP7 MPI™ Bulkhead to Female NPT Connector, designed as a medium-pressure compression fitting, offers secure and gas-tight connections for applications up to 15,000 psi. Made of Heat Code Traceable 316 SS or 2507 Super Duplex materials, this fitting includes front and back ferrules with corrosion-resistant Parker Suparcase®, a longer thread area for improved pressure resistance, and a molybdenum disulfide-coated inverted nut. Compliant with ASME standards including B31.1 and B31.3, this fitting is easy to assemble with standard hand tools, ensuring durability, reliability, and ease of maintenance.
Product Specifications

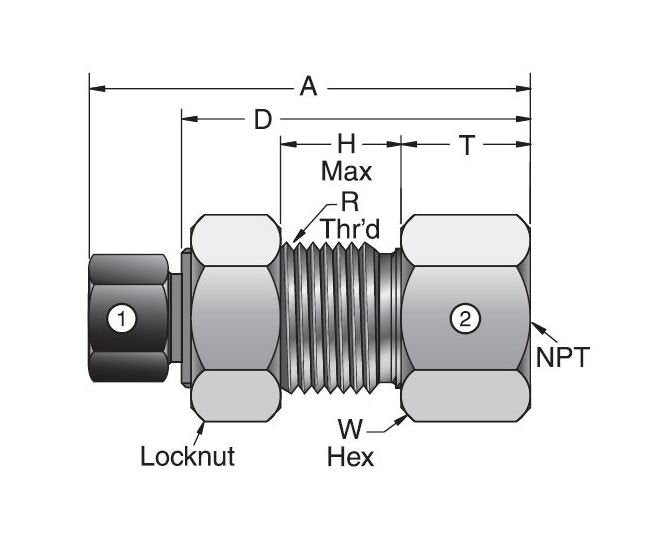

Dimensions A
2.82 in
Dimensions Connection Type
MPI™ x FNPT
Dimensions D
2.07 in
Dimensions H Max
.70 in
Dimensions Mpi Size
9/16
Dimensions Npt Thread
1/4 -18
Dimensions R Thread
1 1/8-20
Dimensions T
.69 in
Dimensions Working Mawp Pressure
15000 psig
Dimensions W Hex
1 3/8 in
Specifications Assembly
MPI™ Fittings are assembled with standard hand tools up to 3/4" size. 1-1/2 turns past finger tight is all that is needed, 3/4 and 1 inch 316 SS tubing and 3/4 and 1 inch 2507 Tubing must be hydraulically preset. Note: All sizes can be hydraulically preset using the Parker Preset Tooling.
Specifications Dedication To Quality
Our resources and vast product line are available through our worldwide distribution network. For more information regarding our products and services, please contact your authorized Parker Instrumentation Distributor.
Specifications Engineering Standards Used
Parker Hannifin has designed all fittings and valves using the following ASME Standards and associated Safety Factors: ASME B31.1 Power Piping ASME B31.3 Process Piping
Specifications Features
Every MPI™ Fitting has the features shown below:Front ferrule with corrosion-resistant Parker Suparcase® forms a seal between the tube, body and ferrule. It also provides a mechanical hold on the tube.Back ferrule with corrosion-resistant Parker Suparcase® provides a strong mechanical hold on the tube.Longer thread area for improved resistance to pressure and load on the ferrules.Molybdenum disulfide-coated inverted nut helps prevent galling, provides easier assembly, and permits multiple remakes.Long tube-support area improves resistance to vibration and line loads.
Specifications Materials And Identification
Standard MPI™ Fittings and Valves are made of Heat Code Traceable 316 SS or optional 2507 Super Duplex materials. Tubing and fitting materials should be selected based on compatibility with the fluid or gas media. Part numbers for MPI™ Fittings use symbols that identify their style, size, and composition. 2507 material is easily identified by a groove in the gland nut hex.
