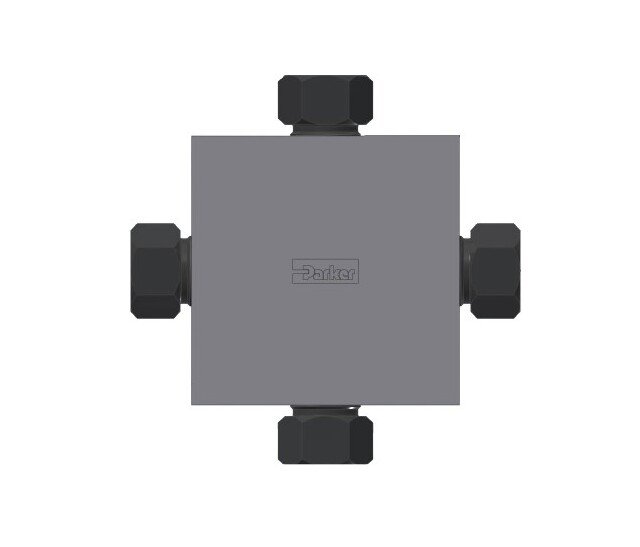

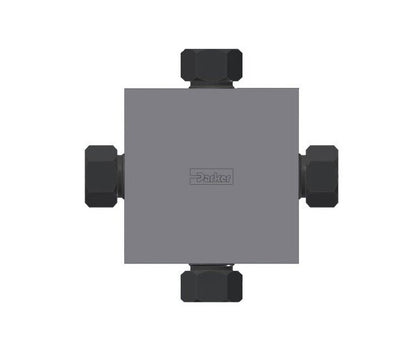

Parker Hannifin KBMP7 MPI™ Union Cross
Parker Hannifin KBMP7 MPI™ Union Cross
SKU:FIT-b571a0
Explore the reliability and versatility of Parker Hannifin KBMP7 MPI™ Union Cross, ideal for high-pressure applications. Crafted with premium materials for secure and gas-tight seals.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Parker Hannifin KBMP7 MPI™ Union Cross
$49.99
Quantity: 1
Claim Your Seller Account
Parker Hannifin KBMP7 MPI™ Union Cross
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Hannifin KBMP7 MPI™ Union Cross, known for its medium pressure compression fitting connections, boasts exceptional security and gas-tight seals suitable for high-pressure applications up to 15,000 psi. Crafted from premium materials such as 316 SS and 2507 Super Duplex, these MPI™ Fittings are ideal for handling a variety of media. Parker ensures quality and compliance by adhering to ASME standards and providing easy assembly with standard tools or hydraulic preset. Explore the reliability and versatility of Parker MPI™ Fittings, essential for industries like oil and gas, research, and facilities requiring top-tier performance.
Product Specifications

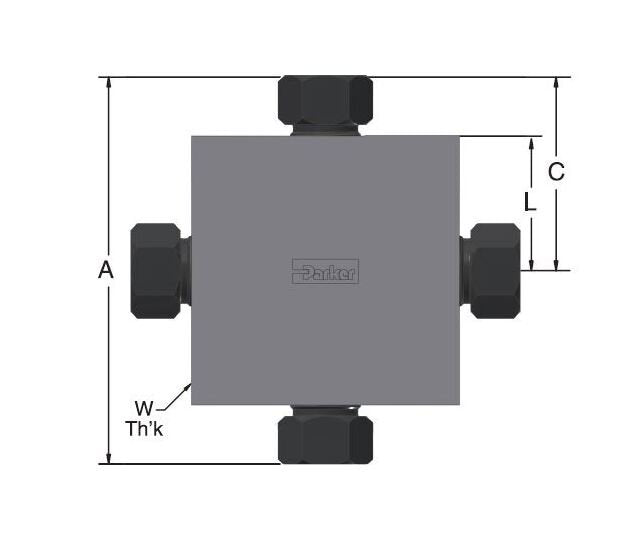

Dimensions A
4.45 in
Dimensions C
2.22 in
Dimensions Connection Type
MPI™ x MPI™ x MPI™ x MPI™
Dimensions L
1.54 in
Dimensions Mpi Size
1/2
Dimensions W Thk
1 in
Specifications Assembly
MPI™ Fittings are assembled with standard hand tools up to 3/4" size. 1-1/2 turns past finger tight is all that is needed, 3/4 and 1 inch 316 SS tubing and 3/4 and 1 inch 2507 Tubing must be hydraulically preset. Note: All sizes can be hydraulically preset using the Parker Preset Tooling.
Specifications Dedication To Quality
Our resources and vast product line are available through our worldwide distribution network. For more information regarding our products and services, please contact your authorized Parker Instrumentation Distributor.
Specifications Engineering Standards Used
Parker Hannifin has designed all fittings and valves using the following ASME Standards and associated Safety Factors: ASME B31.1 Power Piping ASME B31.3 Process Piping
Specifications Features
Every MPI™ Fitting has the features shown below:Front ferrule with corrosion-resistant Parker Suparcase® forms a seal between the tube, body and ferrule. It also provides a mechanical hold on the tube.Back ferrule with corrosion-resistant Parker Suparcase® provides a strong mechanical hold on the tube.Longer thread area for improved resistance to pressure and load on the ferrules.Molybdenum disulfide-coated inverted nut helps prevent galling, provides easier assembly, and permits multiple remakes.Long tube-support area improves resistance to vibration and line loads.
Specifications Materials And Identification
Standard MPI™ Fittings and Valves are made of Heat Code Traceable 316 SS or optional 2507 Super Duplex materials. Tubing and fitting materials should be selected based on compatibility with the fluid or gas media. Part numbers for MPI™ Fittings use symbols that identify their style, size, and composition. 2507 material is easily identified by a groove in the gland nut hex.
