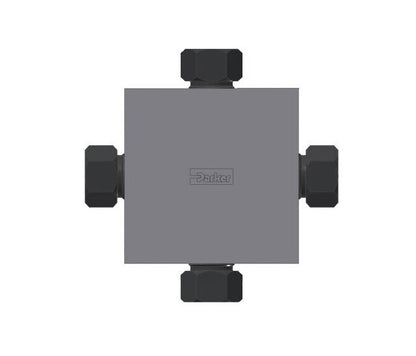

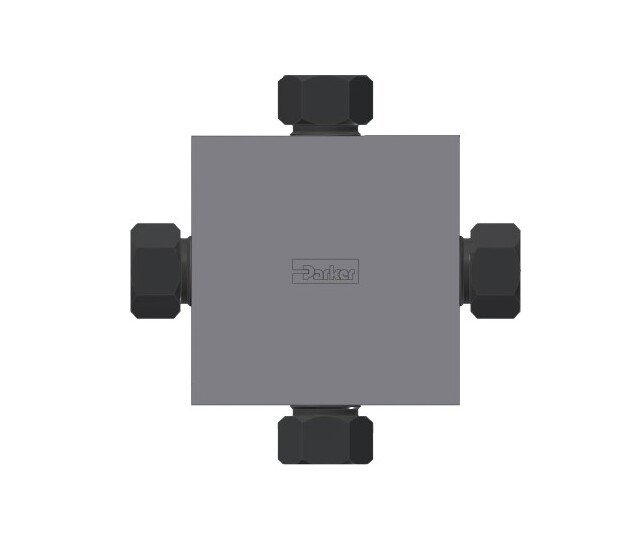

Parker Hannifin KBMP7 MPI™ Union Cross Fitting
Parker Hannifin KBMP7 MPI™ Union Cross Fitting
SKU:FIT-9645cb
Reliable and durable Parker Hannifin KBMP7 MPI™ Union Cross Fitting for medium-pressure applications, featuring Parker Suparcase® ferrules, ASME compliance, and easy installation.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Parker Hannifin KBMP7 MPI™ Union Cross Fitting
$45.99
Quantity: 1
Claim Your Seller Account
Parker Hannifin KBMP7 MPI™ Union Cross Fitting
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Hannifin KBMP7 MPI™ Union Cross Fitting is a reliable medium-pressure compression fitting designed to ensure secure and gas-tight connections manual or hydraulic application. Ideal for a wide range of industries, including off-shore oil and gas platforms and research facilities, this fitting can handle operating pressures up to 15,000 psi. Made from high-quality materials like Heat Code Traceable 316 SS or optional 2507 Super Duplex, each fitting comes complete with ferrules and compression gland nut for easy installation. Meeting ASME standards, these fittings feature Parker Suparcase® ferrules, longer thread areas for enhanced pressure resistance, and molybdenum disulfide-coated inverted nuts for easy assembly, making them a reliable choice for demanding applications.
Product Specifications

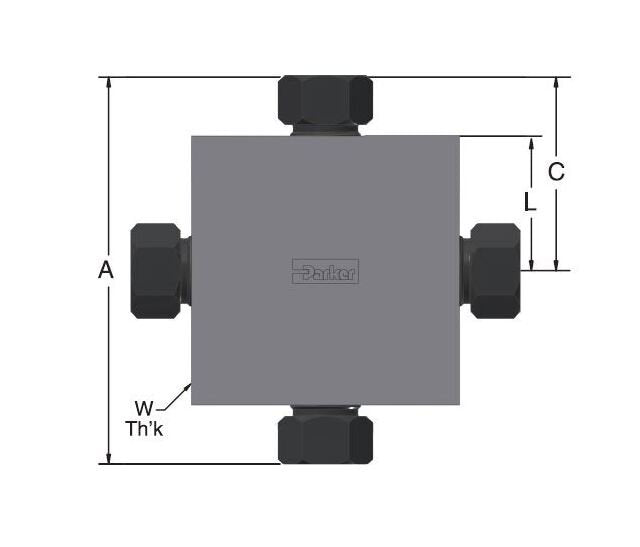

Dimensions A
4.45 in
Dimensions C
2.22 in
Dimensions Connection Type
MPI™ x MPI™ x MPI™ x MPI™
Dimensions L
1.54 in
Dimensions Mpi Size
1/2
Dimensions W Thk
1 in
Specifications Assembly
MPI™ Fittings are assembled with standard hand tools up to 3/4" size. 1-1/2 turns past finger tight is all that is needed, 3/4 and 1 inch 316 SS tubing and 3/4 and 1 inch 2507 Tubing must be hydraulically preset. Note: All sizes can be hydraulically preset using the Parker Preset Tooling.
Specifications Dedication To Quality
Our resources and vast product line are available through our worldwide distribution network. For more information regarding our products and services, please contact your authorized Parker Instrumentation Distributor.
Specifications Engineering Standards Used
Parker Hannifin has designed all fittings and valves using the following ASME Standards and associated Safety Factors: ASME B31.1 Power Piping ASME B31.3 Process Piping
Specifications Features
Every MPI™ Fitting has the features shown below:Front ferrule with corrosion-resistant Parker Suparcase® forms a seal between the tube, body and ferrule. It also provides a mechanical hold on the tube.Back ferrule with corrosion-resistant Parker Suparcase® provides a strong mechanical hold on the tube.Longer thread area for improved resistance to pressure and load on the ferrules.Molybdenum disulfide-coated inverted nut helps prevent galling, provides easier assembly, and permits multiple remakes.Long tube-support area improves resistance to vibration and line loads.
Specifications Materials And Identification
Standard MPI™ Fittings and Valves are made of Heat Code Traceable 316 SS or optional 2507 Super Duplex materials. Tubing and fitting materials should be selected based on compatibility with the fluid or gas media. Part numbers for MPI™ Fittings use symbols that identify their style, size, and composition. 2507 material is easily identified by a groove in the gland nut hex.
