Parker Hannifin Medium Pressure MPI™ Male End to High Pressure C&T Port Fitting
Parker Hannifin Medium Pressure MPI™ Male End to High Pressure C&T Port Fitting
SKU:FIT-5112f6
Secure, gas-tight Parker Hannifin Medium Pressure MPI™ Male End to High Pressure C&T Port Fitting for up to 15,000 psi operations, ASME compliant.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Parker Hannifin Medium Pressure MPI™ Male End to High Pressure C&T Port Fitting
$34.99
Quantity: 1
Claim Your Seller Account
Parker Hannifin Medium Pressure MPI™ Male End to High Pressure C&T Port Fitting
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

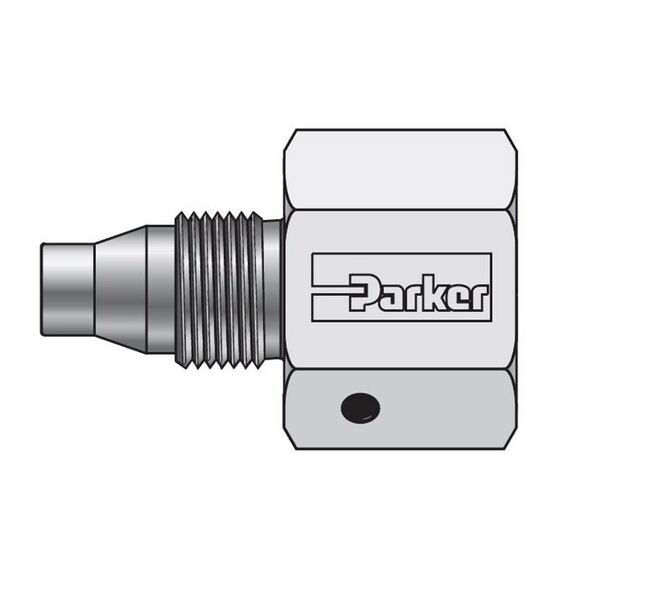

The Parker Hannifin Medium Pressure MPI™ Male End to High Pressure C&T Port Fitting is a robust compression fitting designed for operations up to 15,000 psi (1035 bar). Featuring secure and gas-tight connections, this fitting is perfect for various industries, including off-shore oil and gas platforms and research facilities. Made from Heat Code Traceable 316 SS or optional 2507 Super Duplex materials, it ensures compatibility with a wide range of fluids and gases. Built to ASME standards, the fitting boasts a front ferrule with Parker Suparcase® seal, a longer thread area for enhanced pressure resistance, and a molybdenum disulfide-coated nut for easy assembly and multiple remakes.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

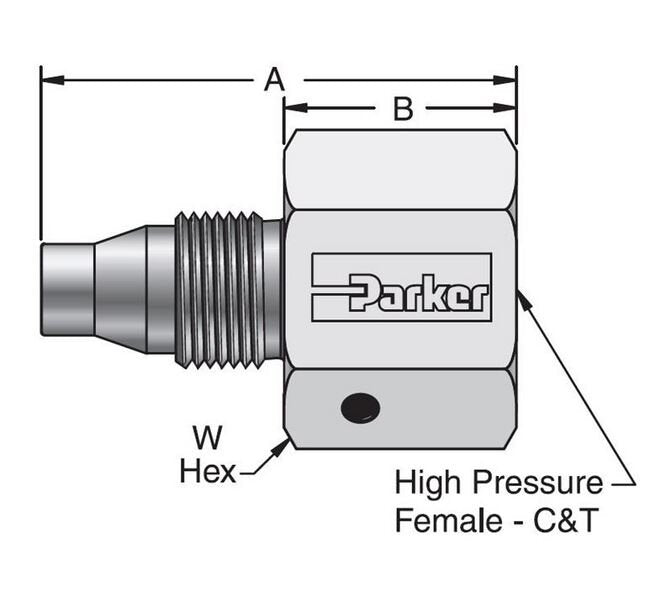

Dimensions A
1.68 in
Dimensions B
.69 in
Dimensions Connection Type
MPI™ to High Pressure C&T Port
Dimensions Ct Thread
9/16-18
Dimensions High Pressure Ct Port
1/4
Dimensions Mpi Male Thread
3/8
Dimensions W Hex
3/4 in
Specifications Assembly
MPI™ Fittings are assembled with standard hand tools up to 3/4" size. 1-1/2 turns past finger tight is all that is needed, 3/4 and 1 inch 316 SS tubing and 3/4 and 1 inch 2507 Tubing must be hydraulically preset. Note: All sizes can be hydraulically preset using the Parker Preset Tooling.
Specifications Dedication To Quality
Our resources and vast product line are available through our worldwide distribution network. For more information regarding our products and services, please contact your authorized Parker Instrumentation Distributor.
Specifications Engineering Standards Used
Parker Hannifin has designed all fittings and valves using the following ASME Standards and associated Safety Factors: ASME B31.1 Power Piping ASME B31.3 Process Piping
Specifications Features
Every MPI™ Fitting has the features shown below:Front ferrule with corrosion-resistant Parker Suparcase® forms a seal between the tube, body and ferrule. It also provides a mechanical hold on the tube.Back ferrule with corrosion-resistant Parker Suparcase® provides a strong mechanical hold on the tube.Longer thread area for improved resistance to pressure and load on the ferrules.Molybdenum disulfide-coated inverted nut helps prevent galling, provides easier assembly, and permits multiple remakes.Long tube-support area improves resistance to vibration and line loads.
Specifications Materials And Identification
Standard MPI™ Fittings and Valves are made of Heat Code Traceable 316 SS or optional 2507 Super Duplex materials. Tubing and fitting materials should be selected based on compatibility with the fluid or gas media. Part numbers for MPI™ Fittings use symbols that identify their style, size, and composition. 2507 material is easily identified by a groove in the gland nut hex.
