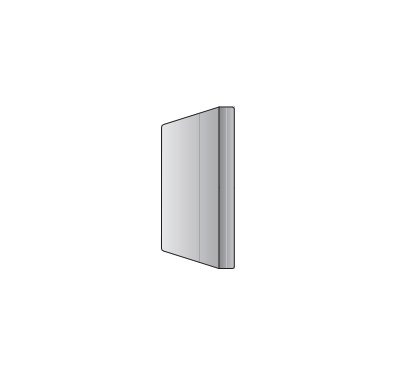

Parker Hannifin MPFF MPI™ Front Ferrule Set
Parker Hannifin MPFF MPI™ Front Ferrule Set
SKU:FIT-3cad14
Secure and gas-tight connections for high-pressure applications up to 15,000 psi. Includes corrosion-resistant ferrules and advanced features for reliability and durability.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Parker Hannifin MPFF MPI™ Front Ferrule Set
$59.99
Quantity: 1
Claim Your Seller Account
Parker Hannifin MPFF MPI™ Front Ferrule Set
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Hannifin MPFF MPI™ Front Ferrule Set is specifically designed for secure and gas-tight connections in high-pressure applications up to 15,000 psi. Each fitting includes corrosion-resistant Parker Suparcase front and back ferrules, ensuring a reliable seal and mechanical hold on tubing. With features like a longer thread area, molybdenum disulfide-coated inverted nut, and a strong tube-support area, these fittings provide exceptional resistance to pressure, vibration, and line loads. Made of Heat Code Traceable 316 SS or optional 2507 Super Duplex materials, the MPFF Ferrule Set is compatible with a wide range of fluids and gases, making it ideal for industries such as off-shore oil and gas exploration, research labs, and other high-pressure facilities.
Product Specifications

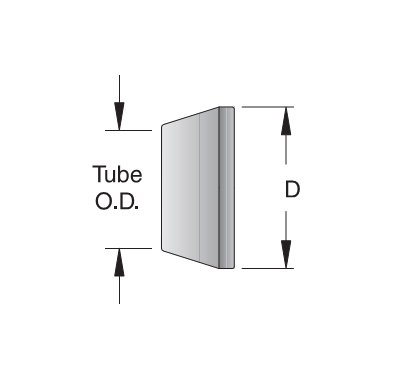

Dimensions Ferrule Sets Per Holder
8
Dimensions Mpff Ferrule Od
1.30 in
Dimensions Tube Od
1 in
Specifications Dedication To Quality
Our resources and vast product line are available through our worldwide distribution network. For more information regarding our products and services, please contact your authorized Parker Instrumentation Distributor.
Specifications Features
Every MPI™ Fitting has the features shown below:Front ferrule with corrosion-resistant Parker Suparcase forms a seal between the tube, body and ferrule. It also provides a mechanical hold on the tube.Back ferrule with corrosion-resistant Parker Suparcase® provides a strong mechanical hold on the tube.Longer thread area for improved resistance to pressure and load on the ferrules.Molybdenum disulfide-coated inverted nut helps prevent galling, provides easier assembly, and permits multiple remakes.Long tube-support area improves resistance to vibration and line loads.
Specifications Materials And Identification
Standard MPI™ Fittings and Valves are made of Heat Code Traceable 316 SS or optional 2507 Super Duplex materials. Tubing and fitting materials should be selected based on compatibility with the fluid or gas media. Part numbers for MPI™ Fittings use symbols that identify their style, size, and composition. 2507 material is easily identified by a groove in the gland nut hex.
Specifications Mpi Fittings Pressure Ratings
The maximum pressure rating is marked on each fitting. MPI™ working pressures to be determined by selected tubing. Please see tables on pages 10 and 11 for specific working pressures. Size 4 (1/4") MPI™ - to 15,000 psi Size 6 (3.8") MPI™ - to 15,000 psi Size 8 (1/2") MPI™ - to 15,000 psi Size 9 (9/16") MPI™ - to 15,000 psi Size 12 (3/4") MPI™ - to 15,000 psi Size 16 (1") MPI™ - to 12,500 psi using 316 SS MPI tubing, 15,000 psi using MPI 2507 Super Duplex tubing with -XF Ferrule Option Note: Tube and pipe thread sizes are designated by the number of sixteenths of an inch (1/4” tube = 4/16” or 4). See "How to Order" on page 8 for additional information.
