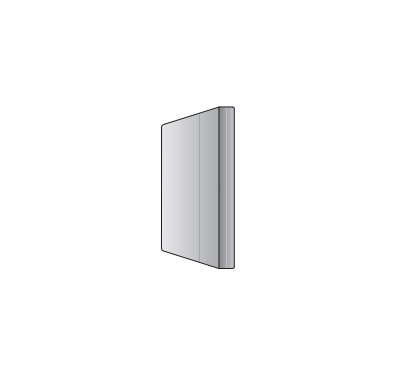

Parker Hannifin MPI™ Front Ferrule Set
Parker Hannifin MPI™ Front Ferrule Set
SKU:FIT-ea1f0a
Secure, gas-tight Parker Hannifin MPI™ Front Ferrule Set for industrial applications up to 15,000 psi. Corrosion-resistant and easy to install.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Parker Hannifin MPI™ Front Ferrule Set
$39.99
Quantity: 1
Claim Your Seller Account
Parker Hannifin MPI™ Front Ferrule Set
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Hannifin MPI™ Front Ferrule Set ensures secure, gas-tight connections suitable for various industrial applications, including off-shore platforms and research facilities. Engineered for operating pressures up to 15,000 psi, these fittings are corrosion-resistant and feature a robust design with a longer thread area for enhanced pressure resistance. Each set includes front and back ferrules for easy installation, making them ideal for handling liquids, gases, and chemicals across different tubing materials.
Product Specifications
Dimensions Ferrule Sets Per Holder
8

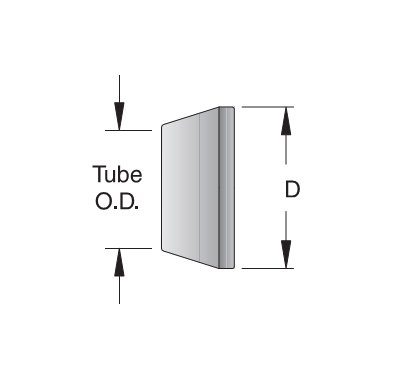

Dimensions Mpff Ferrule Od
.52 in
Dimensions Tube Od
3/8 in
Specifications Dedication To Quality
Our resources and vast product line are available through our worldwide distribution network. For more information regarding our products and services, please contact your authorized Parker Instrumentation Distributor.
Specifications Features
Every MPI™ Fitting has the features shown below:Front ferrule with corrosion-resistant Parker Suparcase forms a seal between the tube, body and ferrule. It also provides a mechanical hold on the tube.Back ferrule with corrosion-resistant Parker Suparcase® provides a strong mechanical hold on the tube.Longer thread area for improved resistance to pressure and load on the ferrules.Molybdenum disulfide-coated inverted nut helps prevent galling, provides easier assembly, and permits multiple remakes.Long tube-support area improves resistance to vibration and line loads.
Specifications Materials And Identification
Standard MPI™ Fittings and Valves are made of Heat Code Traceable 316 SS or optional 2507 Super Duplex materials. Tubing and fitting materials should be selected based on compatibility with the fluid or gas media. Part numbers for MPI™ Fittings use symbols that identify their style, size, and composition. 2507 material is easily identified by a groove in the gland nut hex.
Specifications Mpi Fittings Pressure Ratings
The maximum pressure rating is marked on each fitting. MPI™ working pressures to be determined by selected tubing. Please see tables on pages 10 and 11 for specific working pressures. Size 4 (1/4") MPI™ - to 15,000 psi Size 6 (3.8") MPI™ - to 15,000 psi Size 8 (1/2") MPI™ - to 15,000 psi Size 9 (9/16") MPI™ - to 15,000 psi Size 12 (3/4") MPI™ - to 15,000 psi Size 16 (1") MPI™ - to 12,500 psi using 316 SS MPI tubing, 15,000 psi using MPI 2507 Super Duplex tubing with -XF Ferrule Option Note: Tube and pipe thread sizes are designated by the number of sixteenths of an inch (1/4” tube = 4/16” or 4). See "How to Order" on page 8 for additional information.
