Parker Hannifin MPI™ Medium Pressure Tube Connector
Parker Hannifin MPI™ Medium Pressure Tube Connector
SKU:FIT-2f23bc
Experience unmatched reliability and performance with Parker Hannifin MPI™ Medium Pressure Tube Connector for industrial applications up to 15,000 psi.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Parker Hannifin MPI™ Medium Pressure Tube Connector
$99.99
Quantity: 1
Claim Your Seller Account
Parker Hannifin MPI™ Medium Pressure Tube Connector
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Hannifin MPI™ Medium Pressure Tube Connector is the hallmark of secure and gas-tight compression fittings. Developed for robust industrial applications up to 15,000 psi, these fittings are a pinnacle of reliability and performance. Crafted from Heat Code Traceable 316 SS or optional 2507 Super Duplex materials, each fitting features corrosion-resistant ferrules and an inverted nut for easy assembly and multiple remakes. Meeting ASME standards like B31.1 and B31.3, these fittings ensure unparalleled safety and durability in demanding environments. With Parker Hannifin, quality and compliance are assured.
Product Specifications

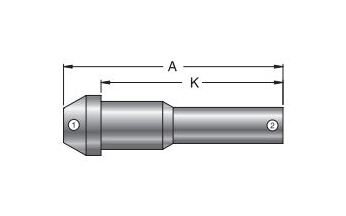

Dimensions A
4.57 in
Dimensions Connection Type
Tube Stub
Dimensions K
3.79 in
Dimensions Mpi Tube Stub 2
3/4
Dimensions Mp Port Connector 1
1
Specifications Assembly
MPI™ Fittings are assembled with standard hand tools up to 3/4" size. 1-1/2 turns past finger tight is all that is needed, 3/4 and 1 inch 316 SS tubing and 3/4 and 1 inch 2507 Tubing must be hydraulically preset. Note: All sizes can be hydraulically preset using the Parker Preset Tooling.
Specifications Dedication To Quality
Our resources and vast product line are available through our worldwide distribution network. For more information regarding our products and services, please contact your authorized Parker Instrumentation Distributor.
Specifications Engineering Standards Used
Parker Hannifin has designed all fittings and valves using the following ASME Standards and associated Safety Factors: ASME B31.1 Power Piping ASME B31.3 Process Piping
Specifications Features
Every MPI™ Fitting has the features shown below:Front ferrule with corrosion-resistant Parker Suparcase® forms a seal between the tube, body and ferrule. It also provides a mechanical hold on the tube.Back ferrule with corrosion-resistant Parker Suparcase® provides a strong mechanical hold on the tube.Longer thread area for improved resistance to pressure and load on the ferrules.Molybdenum disulfide-coated inverted nut helps prevent galling, provides easier assembly, and permits multiple remakes.Long tube-support area improves resistance to vibration and line loads.
Specifications Materials And Identification
Standard MPI™ Fittings and Valves are made of Heat Code Traceable 316 SS or optional 2507 Super Duplex materials. Tubing and fitting materials should be selected based on compatibility with the fluid or gas media.Part numbers for MPI™ Fittings use symbols that identify their style, size, and composition. 2507 material is easily identified by a groove in the gland nut hex.
