Parker Hannifin MPI™ Union Tee - JBMP7
Parker Hannifin MPI™ Union Tee - JBMP7
SKU:FIT-74dbaf
Secure and versatile Parker Hannifin MPI™ Union Tee for diverse industry applications.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Parker Hannifin MPI™ Union Tee - JBMP7
$59.99
Quantity: 1
Claim Your Seller Account
Parker Hannifin MPI™ Union Tee - JBMP7
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

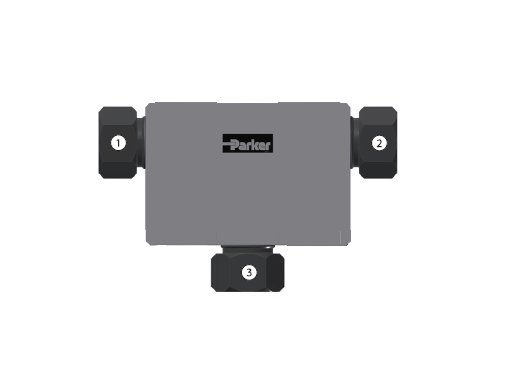

The Parker Hannifin MPI™ Union Tee in the JBMP7 series is a secure and gas-tight connection suitable for various industries, including off-shore oil platforms and research labs. Engineered for operating pressures up to 15,000 psi, this Union Tee is compatible with a range of tubing materials, ensuring versatility in handling liquids, gases, or chemicals. Each fitting comes complete with ferrules and compression gland nut for easy installation, meeting stringent industry standards for quality and performance.
Product Specifications

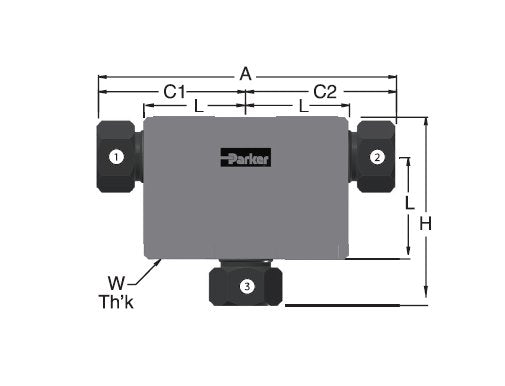

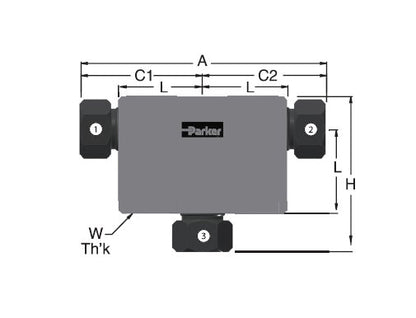

Dimensions A
3.72 in
Dimensions C1
1.86 in
Dimensions C2
1.86 in
Dimensions Connection Type
MPI™ x MPI™ x MPI™
Dimensions H
2.13 in
Dimensions L
1.24 in
Dimensions Mpi Size 1
3/8
Dimensions Mpi Size 2
3/8
Dimensions Mpi Size 3
1/4
Dimensions Working Mawp Pressure
15000 psig
Dimensions W Thk
3/4 in
Specifications Assembly
MPI™ Fittings are assembled with standard hand tools up to 3/4" size. 1-1/2 turns past finger tight is all that is needed, (3/4" and 1" sizes on 2507 Super Duplex tubing must be hydraulically set). All sizes can be preset with a Parker Hydraulic Preset Tool.
Specifications Dedication To Quality
Our resources and vast product line are available through our worldwide distribution network. For more information regarding our products and services, please contact your authorized Parker Instrumentation Distributor.
Specifications Engineering Standards Used
The maximum pressure rating is marked on each fitting. MPI™ working pressures to be determined by selected tubing. Please see tables on pages 10 and 11 for specific working pressures.Size 4 (1/4") MPI™ - to 15,000 psiSize 6 (3.8") MPI™ - to 15,000 psiSize 8 (1/2") MPI™ - to 15,000 psiSize 9 (9/16") MPI™ - to 15,000 psiSize 12 (3/4") MPI™ - to 15,000 psiSize 16 (1") MPI™ - to 12,500 psi using 316 SS MPI tubing, 15,000 psi using MPI 2507 Super Duplex tubing with -XF Ferrule OptionNote: Tube and pipe thread sizes are designated by the number of sixteenths of an inch (1/4” tube = 4/16” or 4). See "How to Order" on page 8 for additional information.
Specifications Features
Every MPI™ Fitting has the features shown below:Front ferrule with corrosion-resistant Parker Suparcase® forms a seal between the tube, body and ferrule. It also provides a mechanical hold on the tube.Back ferrule with corrosion-resistant Parker Suparcase® provides a strong mechanical hold on the tube.Longer thread area for improved resistance to pressure and load on the ferrules.Molybdenum disulfide-coated inverted nut helps prevent galling, provides easier assembly, and permits multiple remakes.Long tube-support area improves resistance to vibration and line loads.
Specifications Materials And Identification
