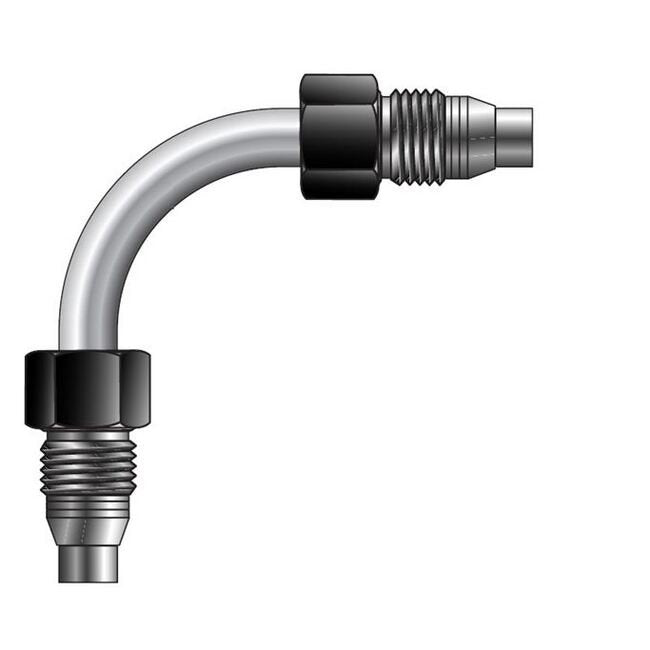

Parker Hannifin T7EBT7 MPI™ Tube Elbow - 1/4" Medium Pressure Fitting
Parker Hannifin T7EBT7 MPI™ Tube Elbow - 1/4" Medium Pressure Fitting
SKU:FIT-cee1a9
Achieve precision and gas-tight seals with Parker Hannifin T7EBT7 MPI™ Tube Elbow - ideal for medium pressure applications up to 15,000 psi. Engineered for reliability and corrosion resistance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Parker Hannifin T7EBT7 MPI™ Tube Elbow - 1/4" Medium Pressure Fitting
$29.99
Quantity: 1
Claim Your Seller Account
Parker Hannifin T7EBT7 MPI™ Tube Elbow - 1/4" Medium Pressure Fitting
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience reliability and precise engineering with the Parker Hannifin T7EBT7 MPI™ Tube Elbow. Designed for medium pressure applications up to 15,000 psi, this compression fitting ensures gas-tight connections, ideal for industries like oil and gas, research labs, and high-pressure facilities. Made of Heat Code Traceable 316 SS or optional 2507 Super Duplex materials, it features corrosion-resistant Parker Suparcase® ferrules, a molybdenum disulfide-coated inverted nut, and compliance with ASME Standards for Power and Process Piping. Whether handling liquids, gases, or chemicals, this MPI™ Fitting guarantees quality and performance.
Product Specifications

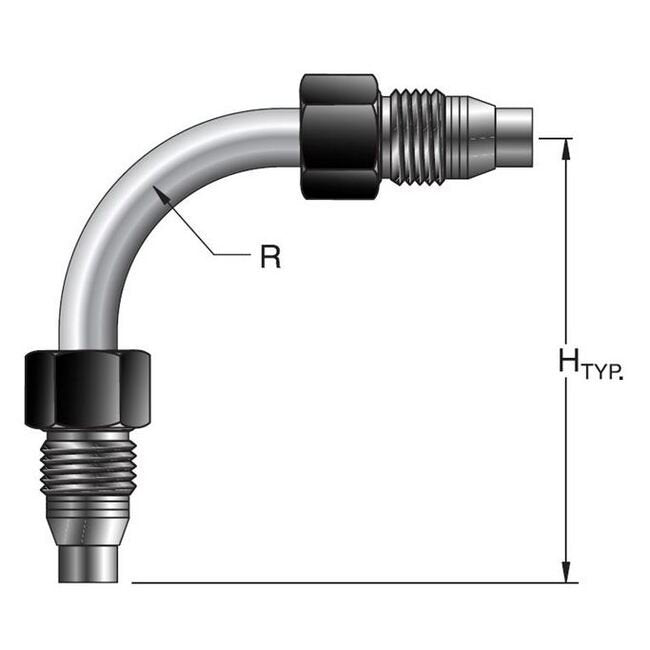

Dimensions Connection Type
MPI™ Tube
Dimensions H
2.91 in
Dimensions R
.75 in
Dimensions Tube Size
1/4
Specifications Assembly
MPI™ Fittings are assembled with standard hand tools up to 3/4" size. 1-1/2 turns past finger tight is all that is needed, 3/4 and 1 inch 316 SS tubing and 3/4 and 1 inch 2507 Tubing must be hydraulically preset. Note: All sizes can be hydraulically preset using the Parker Preset Tooling.
Specifications Dedication To Quality
Our resources and vast product line are available through our worldwide distribution network. For more information regarding our products and services, please contact your authorized Parker Instrumentation Distributor.
Specifications Engineering Standards Used
Parker Hannifin has designed all fittings and valves using the following ASME Standards and associated Safety Factors: ASME B31.1 Power Piping ASME B31.3 Process Piping
Specifications Features
Every MPI™ Fitting has the features shown below:Front ferrule with corrosion-resistant Parker Suparcase® forms a seal between the tube, body and ferrule. It also provides a mechanical hold on the tube.Back ferrule with corrosion-resistant Parker Suparcase® provides a strong mechanical hold on the tube.Longer thread area for improved resistance to pressure and load on the ferrules.Molybdenum disulfide-coated inverted nut helps prevent galling, provides easier assembly, and permits multiple remakes.Long tube-support area improves resistance to vibration and line loads.
Specifications Materials And Identification
Standard MPI™ Fittings and Valves are made of Heat Code Traceable 316 SS or optional 2507 Super Duplex materials. Tubing and fitting materials should be selected based on compatibility with the fluid or gas media. Part numbers for MPI™ Fittings use symbols that identify their style, size, and composition. 2507 material is easily identified by a groove in the gland nut hex.
