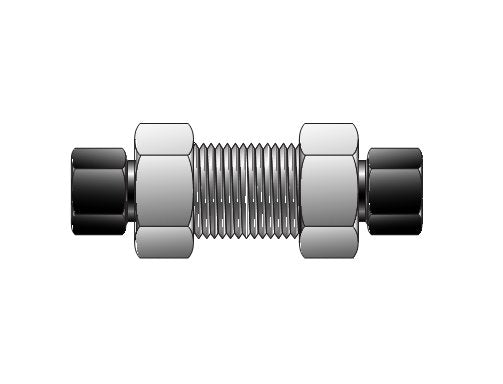

Parker Hannifin WBMP7 MPI™ Bulkhead Union Connector 1/2" x 1/2"
Parker Hannifin WBMP7 MPI™ Bulkhead Union Connector 1/2" x 1/2"
SKU:FIT-28adb6
Secure, leak-free, and durable Parker Hannifin WBMP7 MPI™ Bulkhead Union Connector for high-pressure applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Parker Hannifin WBMP7 MPI™ Bulkhead Union Connector 1/2" x 1/2"
$49.99
Quantity: 1
Claim Your Seller Account
Parker Hannifin WBMP7 MPI™ Bulkhead Union Connector 1/2" x 1/2"
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Hannifin WBMP7 MPI™ Bulkhead Union Connector provides a secure and gas-tight connection suitable for various industries, including off-shore oil and gas exploration platforms, research labs, and high-pressure facilities. Engineered for reliability, this fitting is ideal for handling liquids, gases, or chemicals, supporting operating pressures up to 10,000 psig. Featuring corrosion-resistant materials and advanced design elements such as ferrules, gland nuts, and inverted nuts, this connector ensures leak-free performance and ease of assembly. Complying with stringent MPI™ engineering standards and made from Heat Code Traceable 316 SS or optional 2507 Super Duplex materials, this connector guarantees quality and durability.
Product Specifications

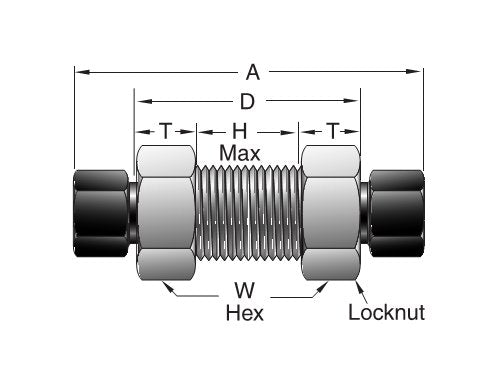

Dimensions A
4.07 in
Dimensions Connection Type
MPI™ x MPI™
Dimensions D
2.70 in
Dimensions H Max
1.32 in
Dimensions Mpi Size
1/2 x 1/2
Dimensions R Thread
1 1/8-20
Dimensions T
.69 in
Dimensions Working Mawp Pressure
10000 psig
Dimensions W Hex
1 3/8 in
Specifications Assembly
MPI™ Fittings are assembled with standard hand tools up to 3/4" size. 1-1/2 turns past finger tight is all that is needed, (3/4" and 1" sizes on 2507 Super Duplex tubing must be hydraulically set). All sizes can be preset with a Parker Hydraulic Preset Tool.
Specifications Dedication To Quality
Our resources and vast product line are available through our worldwide distribution network. For more information regarding our products and services, please contact your authorized Parker Instrumentation Distributor.
Specifications Engineering Standards Used
The maximum pressure rating is marked on each fitting. MPI™ working pressures to be determined by selected tubing. Please see tables on pages 10 and 11 for specific working pressures.Size 4 (1/4") MPI™ - to 15,000 psiSize 6 (3.8") MPI™ - to 15,000 psiSize 8 (1/2") MPI™ - to 15,000 psiSize 9 (9/16") MPI™ - to 15,000 psiSize 12 (3/4") MPI™ - to 15,000 psiSize 16 (1") MPI™ - to 12,500 psi using 316 SS MPI tubing, 15,000 psi using MPI 2507 Super Duplex tubing with -XF Ferrule OptionNote: Tube and pipe thread sizes are designated by the number of sixteenths of an inch (1/4” tube = 4/16” or 4). See "How to Order" on page 8 for additional information.
Specifications Features
Every MPI™ Fitting has the features shown below:Front ferrule with corrosion-resistant Parker Suparcase® forms a seal between the tube, body and ferrule. It also provides a mechanical hold on the tube.Back ferrule with corrosion-resistant Parker Suparcase® provides a strong mechanical hold on the tube.Longer thread area for improved resistance to pressure and load on the ferrules.Molybdenum disulfide-coated inverted nut helps prevent galling, provides easier assembly, and permits multiple remakes.Long tube-support area improves resistance to vibration and line loads.
Specifications Materials And Identification
Standard MPI™ Fittings and Valves are made of Heat Code Traceable 316 SS or optional 2507 Super Duplex materials. Tubing and fitting materials should be selected based on compatibility with the fluid or gas media.Part numbers for MPI™ Fittings use symbols that identify their style, size, and composition. 2507 material is easily identified by a groove in the gland nut hex.
