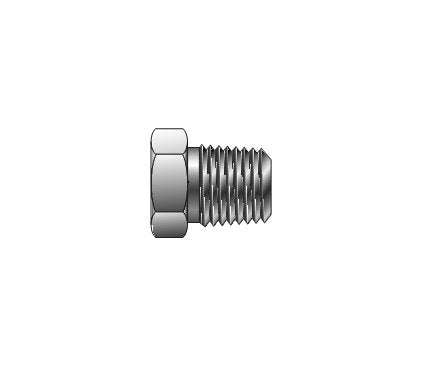

Parker Hex Head Plug Instrument Pipe Fitting for Fractional Tube, NPT Connection, 1/16" Male Thread
Parker Hex Head Plug Instrument Pipe Fitting for Fractional Tube, NPT Connection, 1/16" Male Thread
SKU:FIT-754511
Precision-engineered Hex Head Plug for leak-free connections in critical instrumentation applications.
Regular price
$18.99
Regular price
Sale price
$18.99
Unit price
per
Initiate Order
Parker Hex Head Plug Instrument Pipe Fitting for Fractional Tube, NPT Connection, 1/16" Male Thread
$18.99
Quantity: 1
Claim Your Seller Account
Parker Hex Head Plug Instrument Pipe Fitting for Fractional Tube, NPT Connection, 1/16" Male Thread
$18.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Hex Head Plug PH is a precision-engineered instrument pipe fitting designed for leak-free connections in process, power, instrumentation, and industrial applications. Manufactured to the highest standards with materials like steel, brass, and 316 stainless steel, it offers superior strength and durability. Compliant with ANSI B31.1 and B31.3 standards, this fitting ensures reliability and safety in various environments. Packaged in sealed plastic boxes, it arrives clean and ready for installation, making it ideal for critical instrumentation connections.
Product Specifications

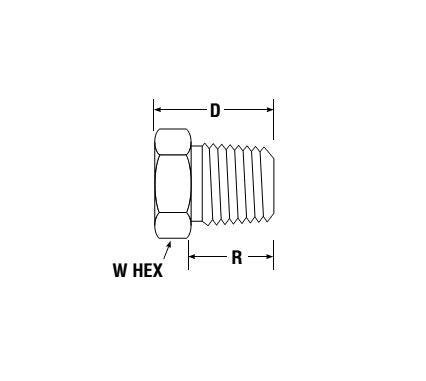

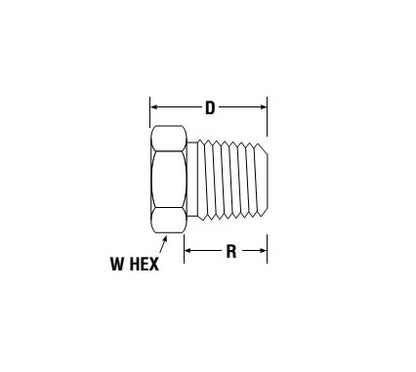

Dimensions Connection Type
NPT
Dimensions D
.54 in
Dimensions Npt Thread Male
1/16
Dimensions R
.38 in
Dimensions Working Pressure Brass
6000 psig
Dimensions Working Pressure Stainless Steel
10000 psig
Dimensions Working Pressure Steel
10500 psig
Dimensions W Hex
3/8 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
